Valentini 'RA' Series Rock & Stone Crushers,
Asphalt Grinders & Milling Machines, Soil Stabilizers
All GEAR Side Drive in Oil Bath Gear Box - NO Belts, NO Chains
Only Excellent Results & Excellent Power Transfer!
Only Excellent Results & Excellent Power Transfer!

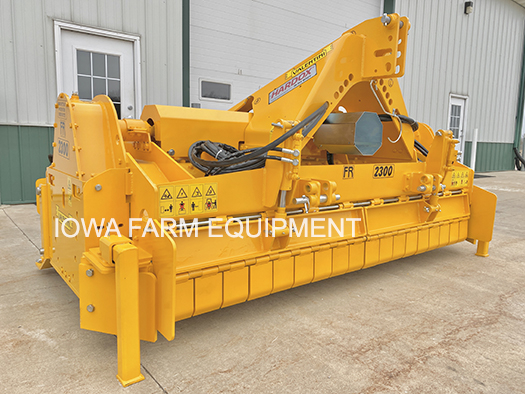

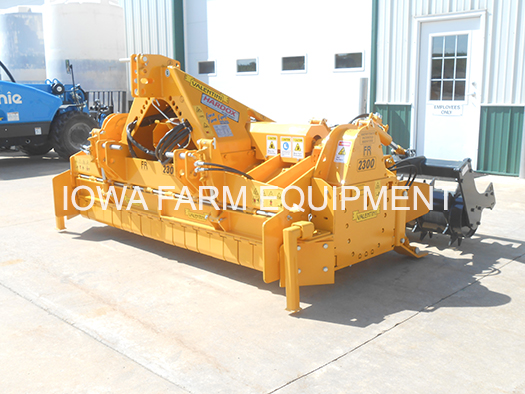

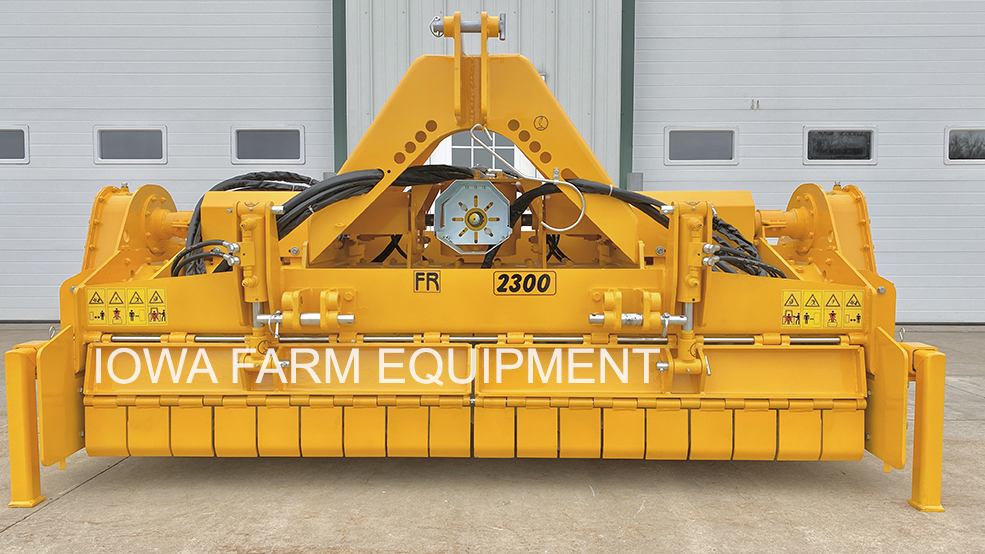

RA2300DT Front Gate Closed
'RA' SERIES STONE CRUSHERS FOR 100-230HP TRACTORS
As with ALL Valentini Crushers, the 'RA' Series has been providing Superior Single Pass Results in All Applications: Land Reclamation, Agriculture (Row Crop Fields, Produce Rows, Pastures, Seed Bed Preparation, Horticultural Benches & Rows, Vineyards, Orchards, Groves, etc.), Roadway Maintenance & Paving (Gravel & Chip Seal Roads, Asphalt Roads & Highways), as well as Rough or Finish Grading in Pre & Post Construction Applications. From Rock & Stone Crushing, Stump Mulching, Soil Shredding, Soil Stabilization, and Asphalt Pulverizing/Grinding, Valentini Crushers Have Been CRUSHING IT for Decades!!! In the Sample Videos Below, You'll See Evidence of the Superior Single Pass Performance, Even Shaving Tops off of the Outcroppings of Embedded Boulders,
Even at Work Crushing & Pulverizing Limestone!
STANDARD FEATURES:
- Category 2, 3-Point Hitch.
- Cam Clutch Protected PTO Shaft!
- It Doesn't Get Any Better Than a Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
- No Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions.
- Dual Transmission Models have Slip Clutch Protected Side Drive Shafts.
- Crushers 'Diminishing Chamber' is Comprised of the Following:
- Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
- Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
- Hydraulically Controlled Rear Containment Door Controls the Duration That Fragments Remain in the Chamber:
- Rear Containment Door Can be Opened or Closed On-The-Fly During Operation!
- Containment Door Constructed for Extreme Service Duty & Wear Resistance.
- Crusher Body Internal Hardox Lining is Replaceable.
- Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.
- Keep Front Gate Closed for Max Deflector use, or Open For Max Working Depth.
- Extreme Service Duty Rotor is Shock & Wear Resistant.
- 25" Rotor Working Diameter, Tip to Tip.
- Central & Side Gear Drives in Oil Bath Gearboxes.
- Single Transmission Units Have Oil Bath Bearing Enclosures for Non-Drive Side.
- Dual Transmission Units have Oil Bath Gearboxes on Both Sides.
- Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
- Hydraulically Adjusted Rear Skid Shoes.

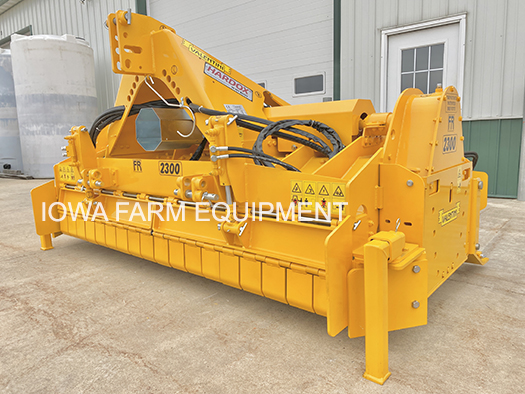

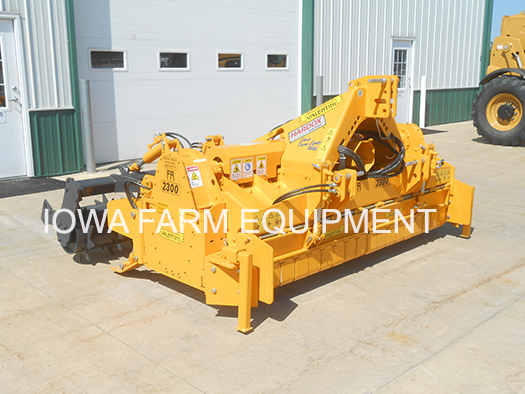

RA2300DT ISO View, Front Gate Closed
Valentini’s Carbide ‘Bullet Style Teeth’
For The Most Severe Conditions, Including Milling!
For The Most Severe Conditions, Including Milling!
Efficiently ‘Chevron Patterned’ with Anvil Counter Crushing Bar & Secondary Reducing Grid
Valentini's Multi-Purpose Carbide 'Rock & Wood Bits'
For Stone Crushing, Finer Mulching of Wood Debris, and Sandy, Abrasive Soil Conditions!

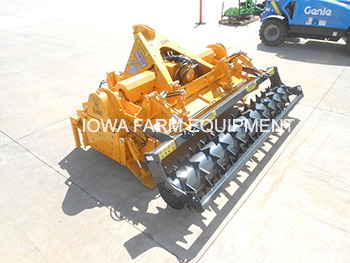

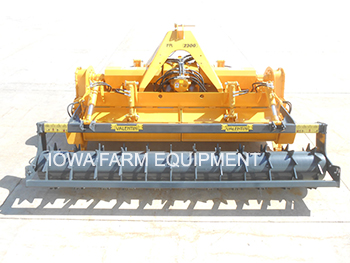

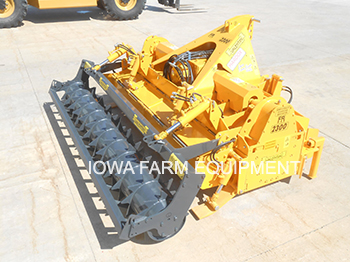

RA2300DT with Hydraulically Controlled Packer Roller
RA2300DT with Hydraulically Controlled Packer Roller

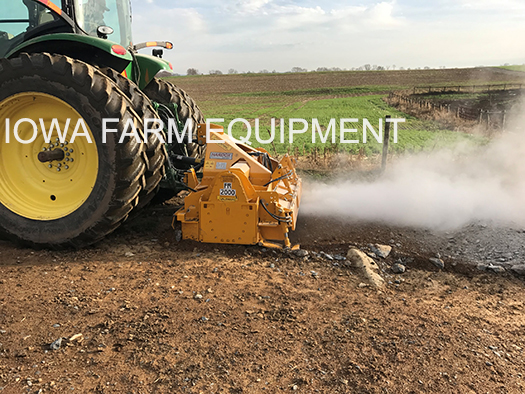

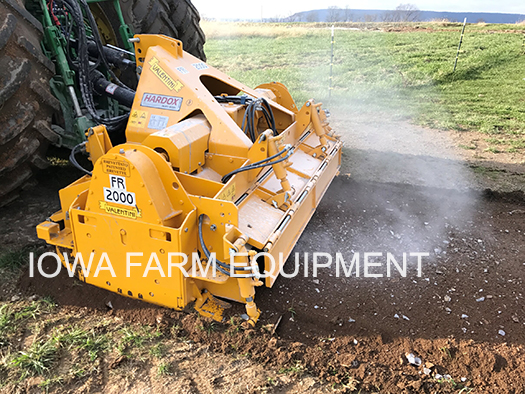

RA2000 Grinding Loose Limestone Rock

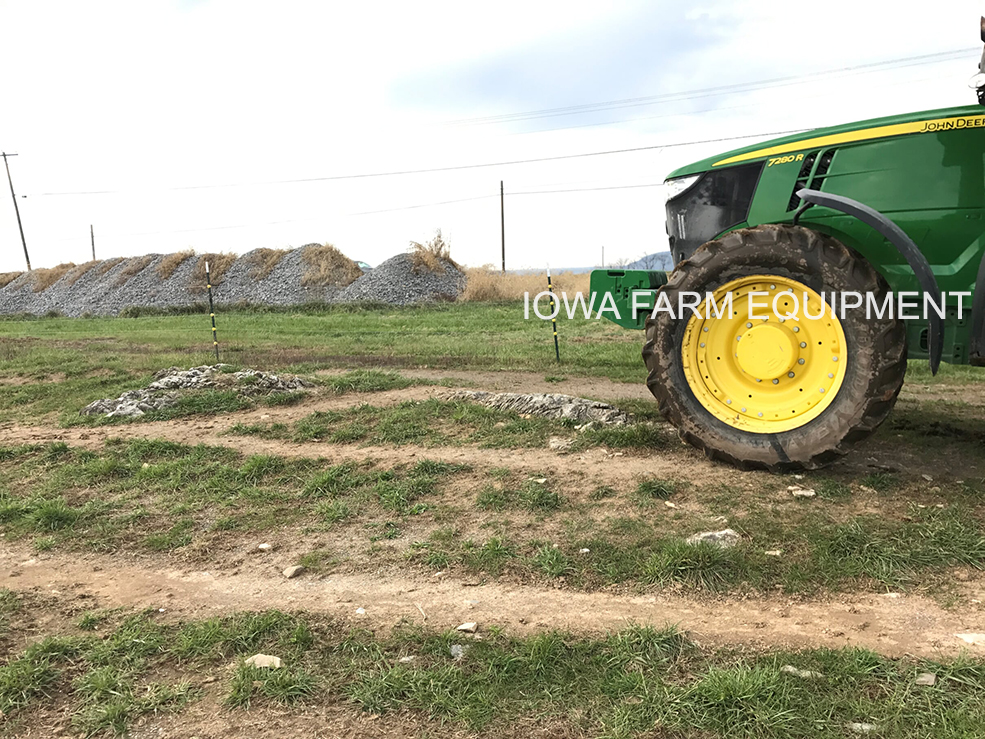

Stockpiled Rocks Removed the Old Fashioned Way in Backround

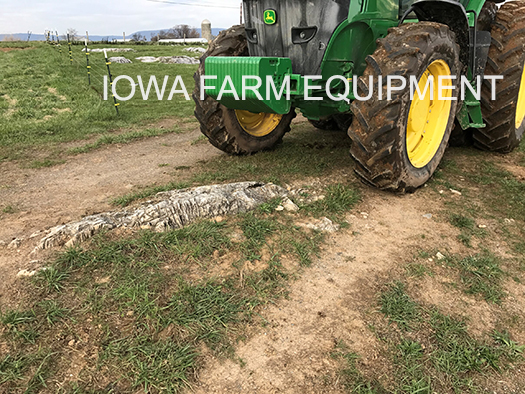

RA2000’s Efficiently Reclaimed Land & Crushing Results
RA2000 Grinding Loose Limestone Rock

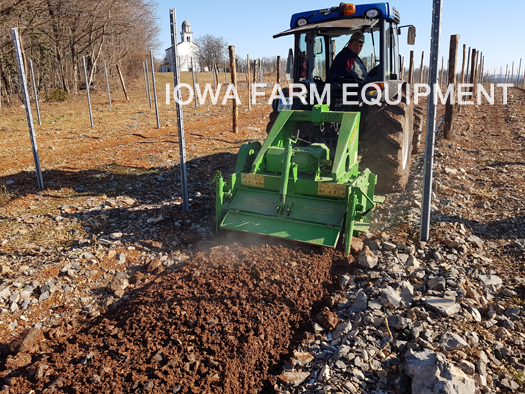

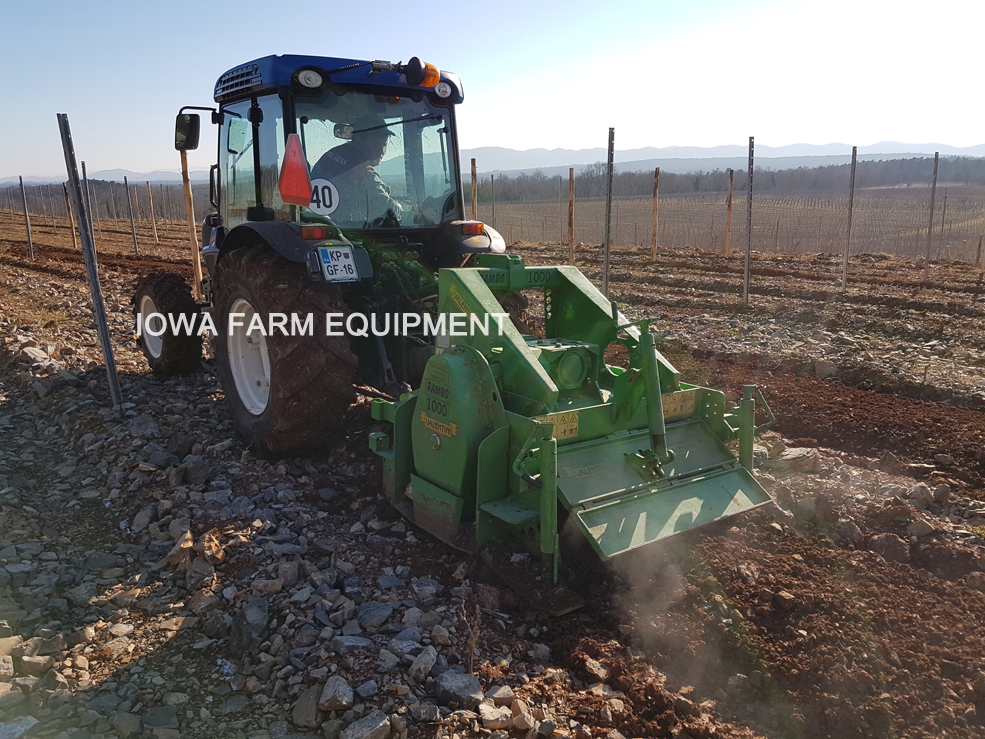

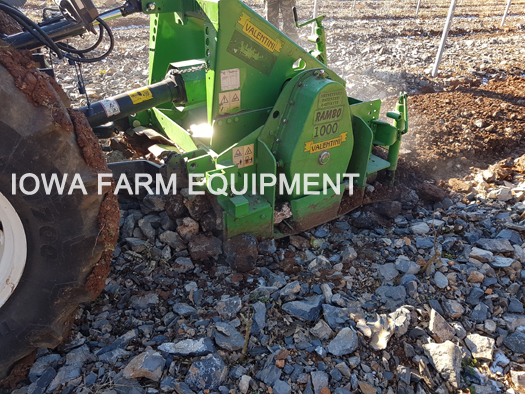

RA1000 Grinding High Concentration of Large Rocks in Vineyard Rows

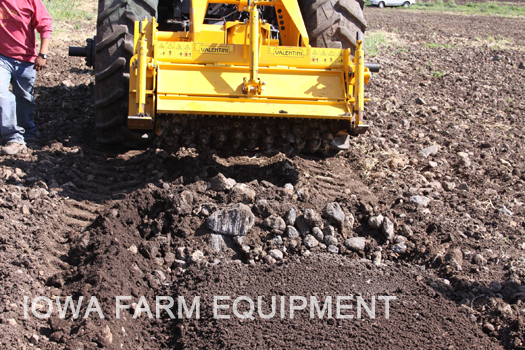

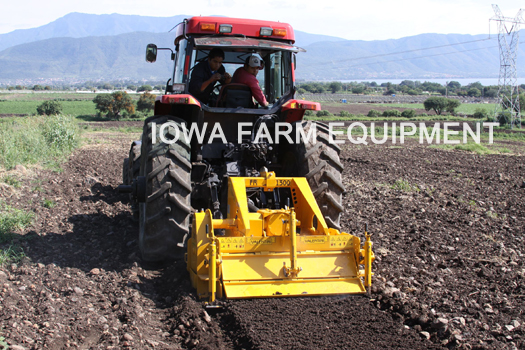

RA1300 Efficiently Reclaiming Open Fields
| 'RA' SERIES CRUSHER SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| MODEL | RA1000 | RA1300 | RA1500 | RA1800DT | RA2000DT | RA2300DT |
| Tractor Horsepower (PTO) | 100-150HP | 110-150HP | 130-150HP | 140-230HP | 150-230HP | 160-230HP |
| PTO Speed | 540 RPM | 540 RPM | 540 RPM | 1000 RPM | 1000 RPM | 1000 RPM |
| Rotor Speed | 236 RPM | 259 RPM | ||||
| Working Width | 42" | 52" | 62" | 72" | 82" | 92" |
| Overall Width | 56" | 66" | 76" | 86" | 96" | 105" |
| Quantity of Teeth | 88 | 106 | 124 | 142 | 160 | 178 |
Working Depth on Non-Passive Surfaces(e.g. Asphalt, Sheets of Granite, etc.) |
6" | |||||
Working Depth on Passive Surfaces(e.g. Dirt, Gravel, Sod, etc.) |
10" | |||||
| Weight | 3,916 lbs. | 4,180 lbs. | 4,620 lbs. | 5,984 lbs. | 6,600 lbs. | 6,930 lbs. |
| Weights are Less Pallets, Crates, PTO Shaft & Rollers. | ||||||
| (DT) Denotes Double Transmission | ||||||
| 'RA' SERIES CRUSHER SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| MODEL | RA1000 | RA1300 | RA1500 | RA1800DT | RA2000DT | RA2300DT |
| Tractor Horsepower (PTO) | 100-150HP | 110-150HP | 130-150HP | 140-230HP | 150-230HP | 160-230HP |
| PTO Speed | 540 RPM | 540 RPM | 540 RPM | 1000 RPM | 1000 RPM | 1000 RPM |
| Rotor Speed | 236 RPM | 259 RPM | ||||
| Working Width | 42" | 52" | 62" | 72" | 82" | 92" |
| Overall Width | 56" | 66" | 76" | 86" | 96" | 105" |
| Quantity of Teeth | 88 | 106 | 124 | 142 | 160 | 178 |
Working Depth on Non-Passive Surfaces(e.g. Asphalt, Sheets of Granite, etc.) |
6" | |||||
Working Depth on Passive Surfaces(e.g. Dirt, Gravel, Sod, etc.) |
10" | |||||
| Weight | 3,916 lbs. | 4,180 lbs. | 4,620 lbs. | 5,984 lbs. | 6,600 lbs. | 6,930 lbs. |
| Weights are Less Pallets, Crates, PTO Shaft & Rollers. | ||||||
| (DT) Denotes Double Transmission | ||||||
Specifications & Designs Are Subject to Change Without Notice
