Valentini Mammut Series 3-Point Power Harrows

Valentini Mammut Tractor Power Harrows

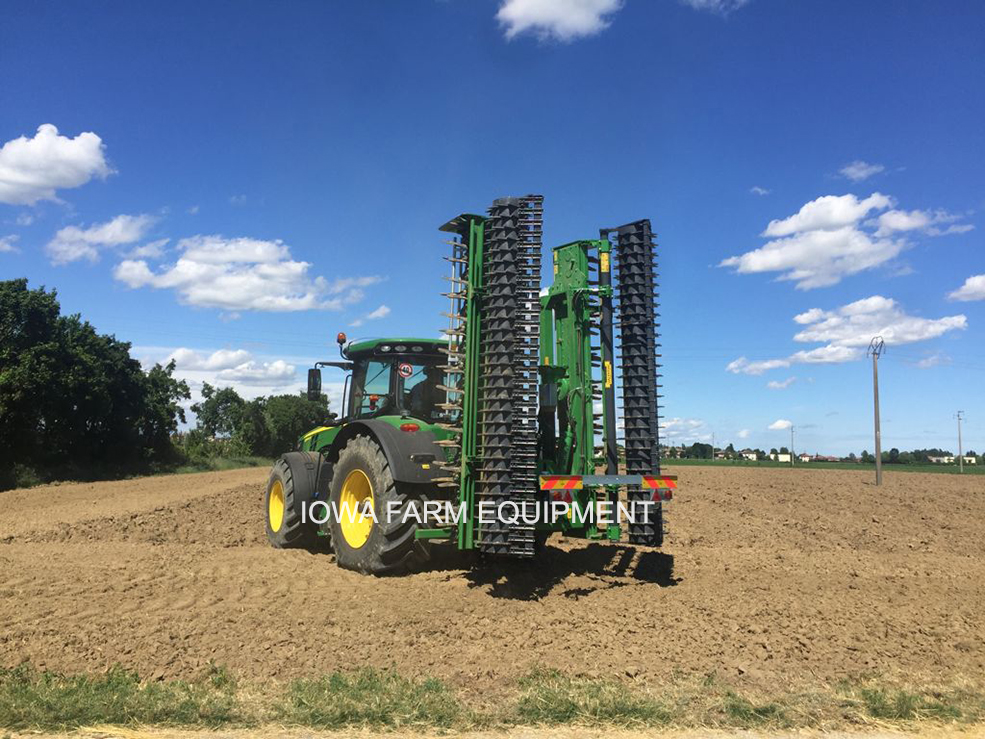

'Mammut' Series Folding Tiller Shown with Optional Manually Adjusted Cage Roller.

'MAMMUT' SERIES FOLDING POWER HARROWS FOR 200-400HP(PTO) TRACTORS

As with ALL Valentini Power Harrows, the Mammut Series Is Quick-Hitch Compatible, and has been providing Excellent Soil Conditioning & Seed Bed Preparation in all types of soils - without inverting the soil, leaving nutrients on the top layer, leaving weed seeds deep & dormant, and not inverting moist substructure soils, preventing unwanted loss of moisture! The results have been proven in applications varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the most unconventional settings, Valentini has proven to have Bullet Proof Reliability, while producing Excellent Results in one pass! Whether your ground conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, expect to get the results you want with Valentini Power Harrows.

STANDARD FEATURES

  • Quick Hitch Compatible, Cat 3, 3-Point Hitch.
    • Floating Pull Arm Hitches.
  • 1000RPM Large Sump Gearbox.
  • 2 Way Cylinders for Hydraulic Folding & Opening of Power Harrow Sections.
  • Two Blades Per Rotor.
    • Quick Attach Blades Standard on King, Maxi-D & Mammut Series.
  • 9" Spacing Between Rotors Provides Highest Population of Blades.
  • Heat Treated, Ultra-Hardened Central & Side Gears, and Blade Holders.
  • Oil Bath Transmission (Top Drive Enclosure) & Gear Box.
  • Side Skirts for Containment are adjustable.
  • Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
  • Manually Adjusted Rear Rollers (working depth) via Rear Corner Pin-Adjustments.
    • Optional Adjustment Methods.
      • Manual Hand Crank or Hydraulic Adjusting Kit for Infinite Travel Adjustment.
  • Safety Guards.

Valentini Mammut Tractor PTO Power Harrows

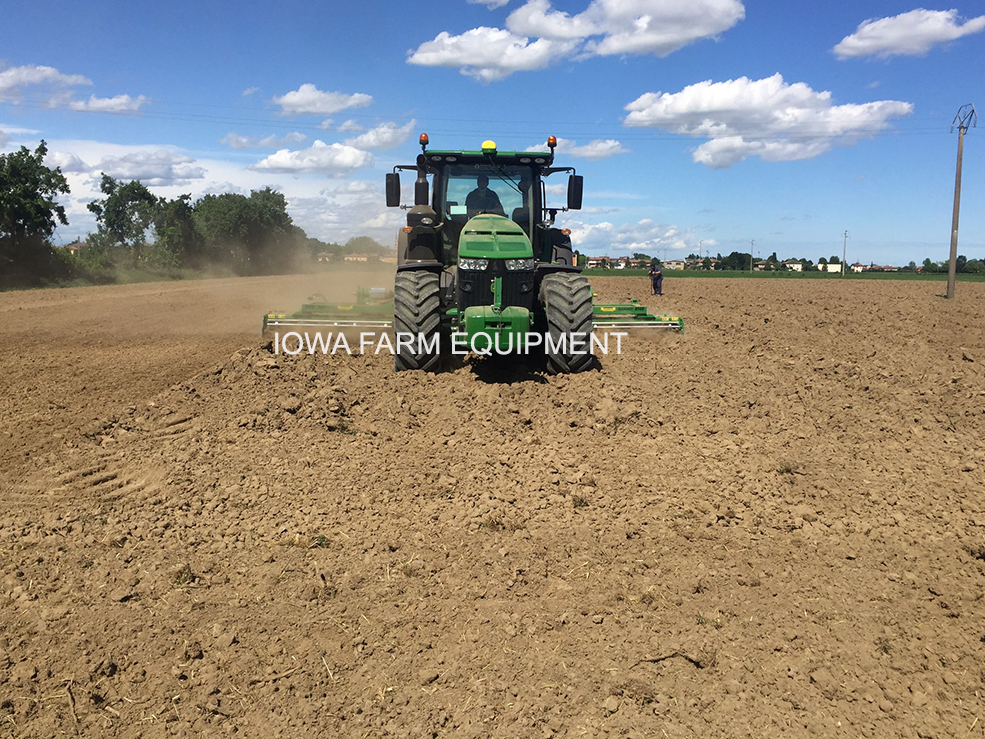

'Mammut' Series Folding Tiller Shown with Optional Manually Adjusted Roller.

Valentini Mammut Tractor PTO Rotary Harrows

Valentini Mammut Tractor 3 Point Power Harrows

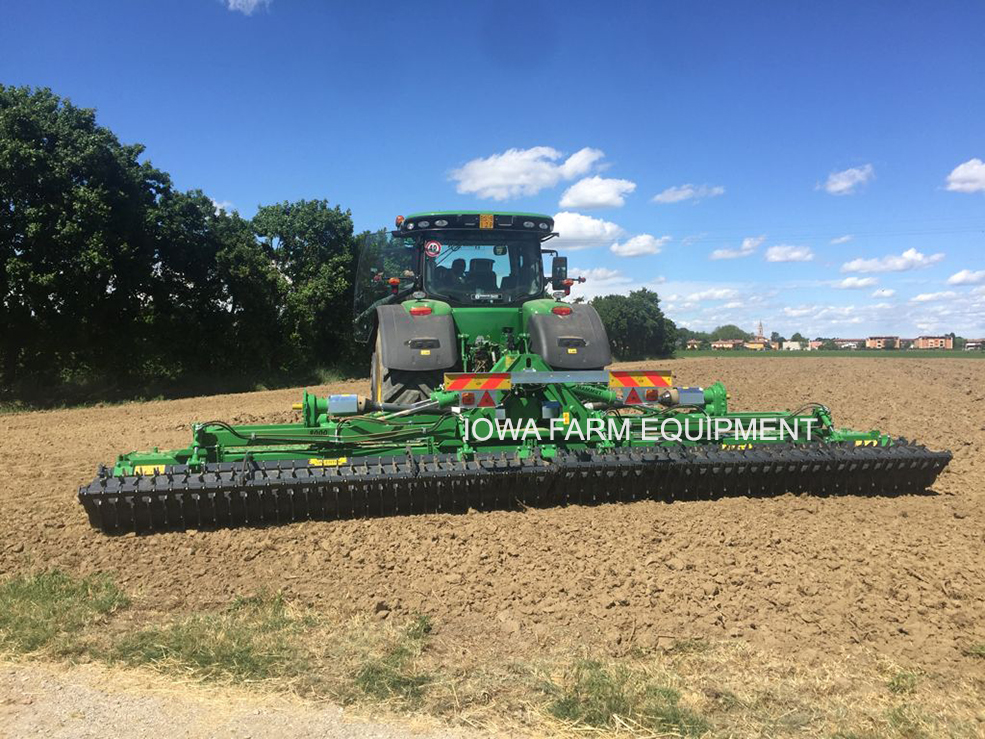

'Mammut' Series Folding Tiller Shown with Optional Manually Adjusted Roller.

Valentini Mammut Tractor 3PT Power Harrows
'Mammut' Series Folding Tiller Shown with Optional Manually Adjusted Roller.

Accessories

Valentini King Power Harrow Plowshares
FRONT CORNER PLOW SHARES
Enables deeper penetration of Side Plates.
(Plate style is effective with high crop residue)

Valentini King Power Harrow Side Rigging Discs
FRONT CORNER DISCS
Enables deeper penetration of Side Plates.

Valentini King Power Harrow Track Eradicator
TIRE TRACK ERADICATOR

OPTIONAL REAR ROLLERS
Provides Superior Working Depth Adjustment & Soil Conditioning.
Available with Manual or Hydraulic Adjustment.
Hydraulic Adjustment Kits are Standard for Rollers on Mammut Series Power Harrows!

Valentini Hermes Roto Tiller Cage Roller
CAGE ROLLER
Shown on Z-Series Tiller w/Hyd. Depth Adjustment
Also Shown in Second Video Above

Valentini Hermes Roto Spiral Roller
SPIRAL ROLLER
Shown on Maxi-D Power Harrow with Hydraulic Depth Adjustment

Valentini Hermes PTO Powered Tiller Packer Roller
PACKER ROLLER
Shown on A-Series Tiller w/Manual Depth Adjustment
Also Shown in First Video Above

Valentini Rotary Tiller Basket Roller
BASKET ROLLER
Shown on U-Series Tiller w/Manual Depth Adjustment

Valentini Roto Tiller Flat Roller
SMOOTH ROLLER

Additional Rollers Available (photos not available):
  • Smooth Roller
  • Blade Roller
  • Spike Roller
  • Toothed Roller

MAMMUT SERIES POWER HARROW SPECIFICATIONS
MODEL 5000 6000 7000 8000 9000
Tractor Horsepower Required 200 - 400 HP 250 - 400 HP 300 - 400 HP 350 - 400 HP 380 - 400 HP
Rotor 361 RPM
Working Width 199" 234" 268" 303" 338"
Overall Width 201" 236" 270" 305" 340"
Number of Blades 44 52 60 68 76
Working Depth 12"
Weight with Packer Roller 7,700 lbs. 8,800 lbs. 9,922 lbs. 11,110 lbs. 12,210 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
