Valentini L Series Tractor 3 Point Rock/Stone Crushers

Valentini Professional Grade Rock Crushers

ROCK/STONE CRUSHERS FOR 70 - 170 HP TRACTORS

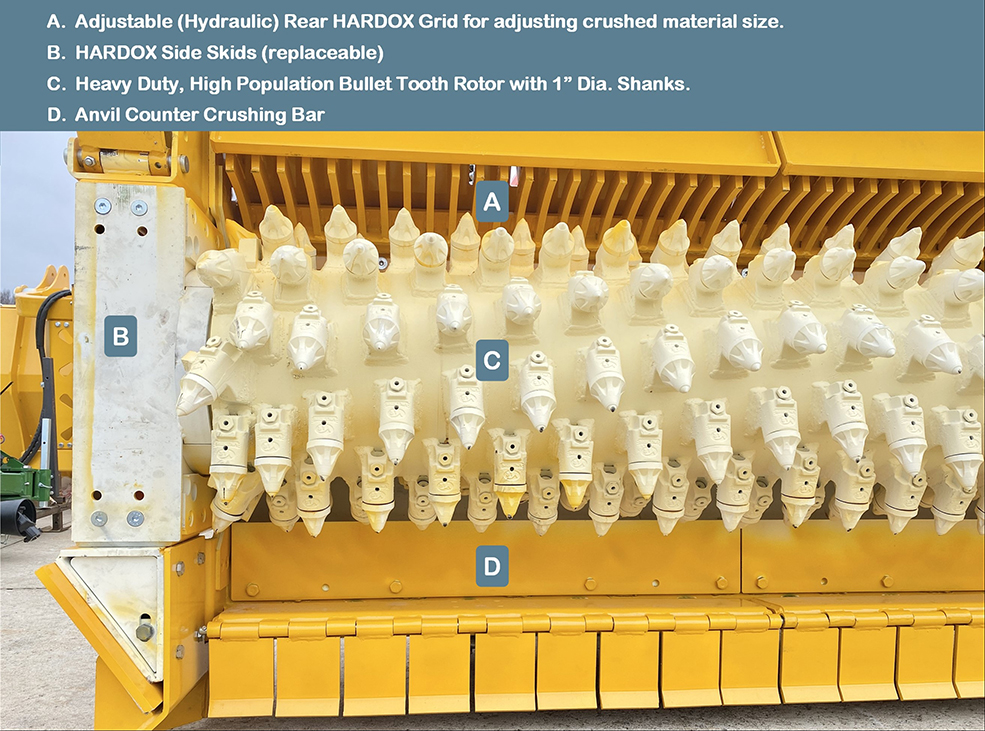

The "L" Series Stone Crushers Have Been Designed for the Needs of Professional Farmers as Well as for Contractors That do Road Maintenance. The L is a Reverse Rotation Stone Crusher, Equipped with a Large Amount of Picks Made of Special Steel & of Counter Blades Bolted Inside the Hood. The Stones are Lifted from the Ground & Then Crushed Into Small Pieces Against the Counter Blades, Producing Uniform Material.

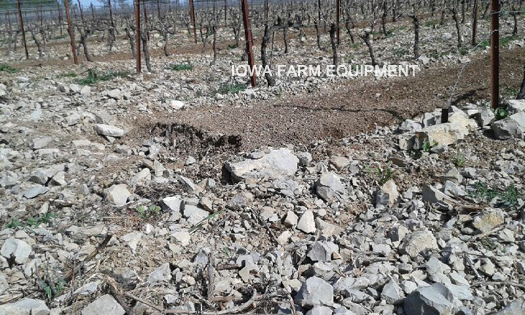

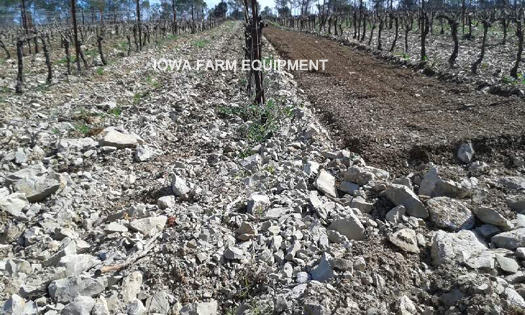

In Agriculture, the L Converts Fields Full of Stones Into Soil Ready for Cultivating Due to It's Being Able to Crush Stones Up to 6" Deep in the Ground. The Ground Is then Ready for Vineyards, Orchards, Crops, etc. The Worked Soil will Then be Very Homogeneous & Will Help the Even Penetration of Plant Roots, Which will Thrive & Grow Better Due to the Minerals Released by the Crushed Stones. Rain & Irrigation Water will be Distributed More Uniformly & the Humidity of the Ground will be Maintained Longer.

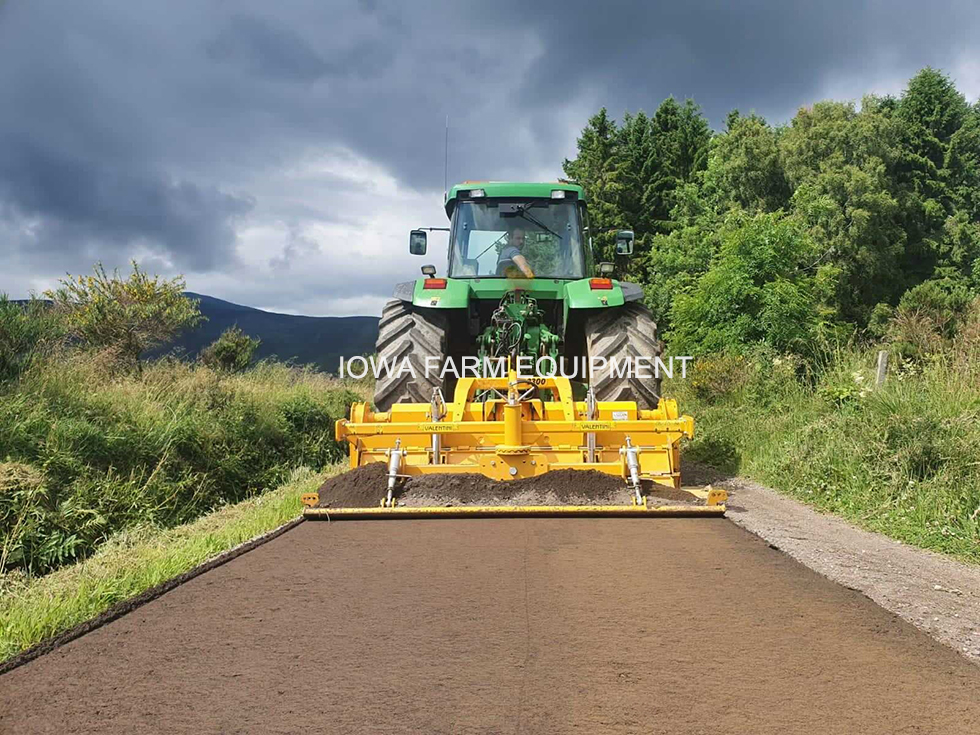

In the Industry, the L Stone Crusher Can be Used in Several Applications, Such as Leveling & Rebuilding Gravel Roads, Crushing Debris, Maintaining Service Roads & Cutting Fire Lines in Forest, Destroying Stumps, Creating & Leveling Ski Slopes, Parks, Golf Courses, Etc.

The L is a Machine that Helps to Preserve the Environment & Save Money, Because It's Recycling the Existing Material. So, to Service a Country Road, it Will be Necessary to Bring Gravel from a Quarry, While Debris, Asphalt, Concrete, etc. will be Shredded in Place & it will not be Necessary to Dispose the Materials.

Major Features:

  • 3 Point Hitch Category 2.
  • Drive Line with Safety Disengagement.
  • Side Transmission with Pinions in Oil Bath (Double on Models 1800, 2000, 2300).
  • Rear Rake Screen to Contain & Select Worked Material.
  • Manual & Hydraulic Adjustment.

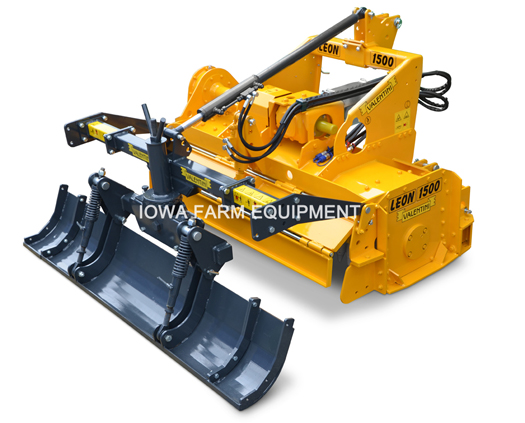

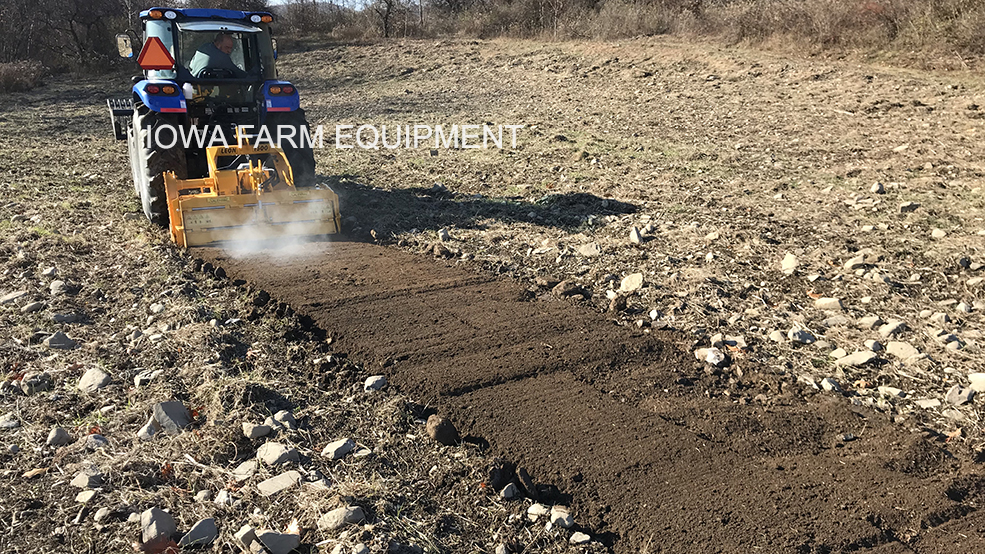

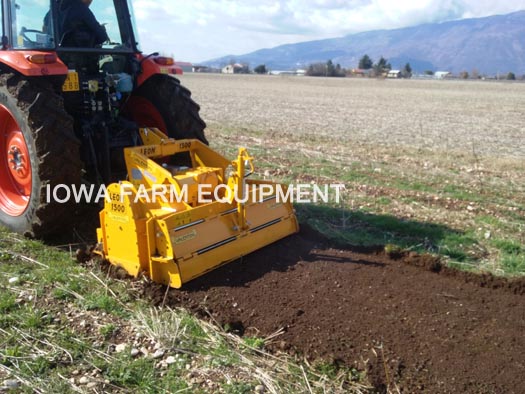

Valentini Leon 1500 Rock Crusher on Antonio Carraro Tractor

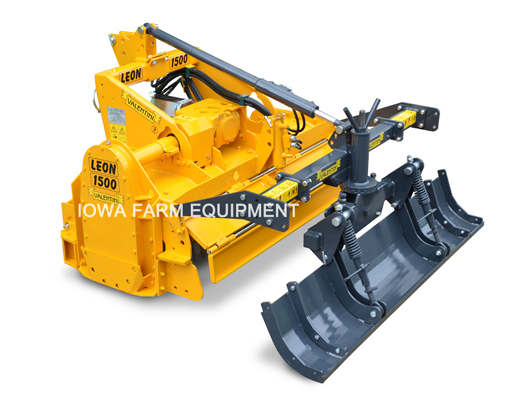

Valentini Leon 1500 Stone Crusher on Antonio Carraro Tractor

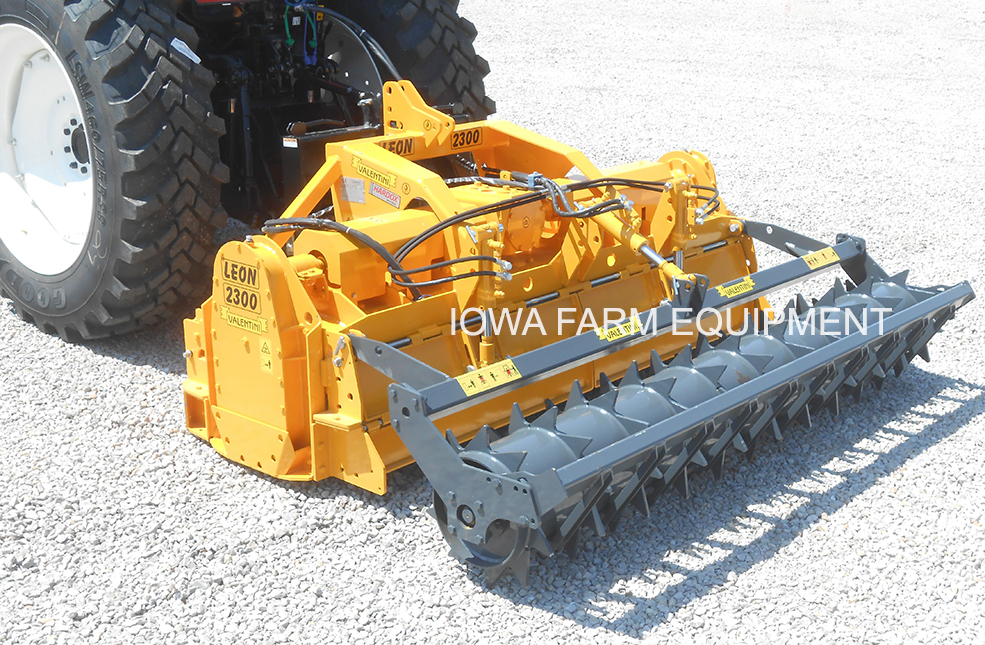

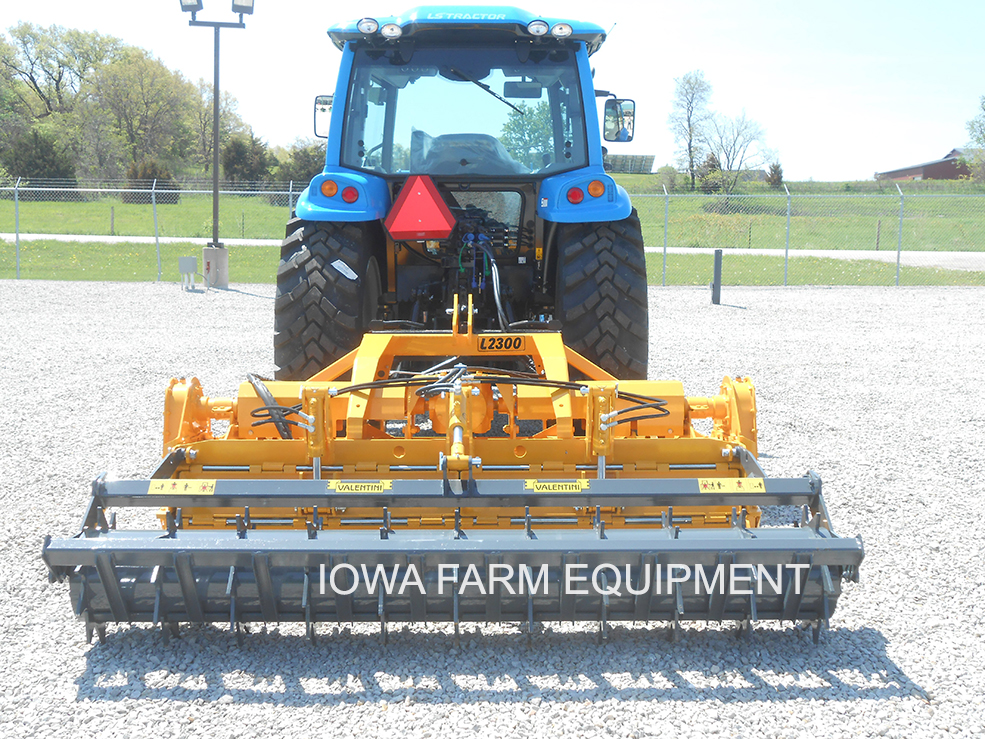

Valentini L Series Tractor Rock Crushers

STANDARD EQUIPMENT:

  • 3 Point Universal Hitch (Category 2).
  • Single Speed Unit, 540 RPM (1000 RPM for Models 1800, 2000, 2300).

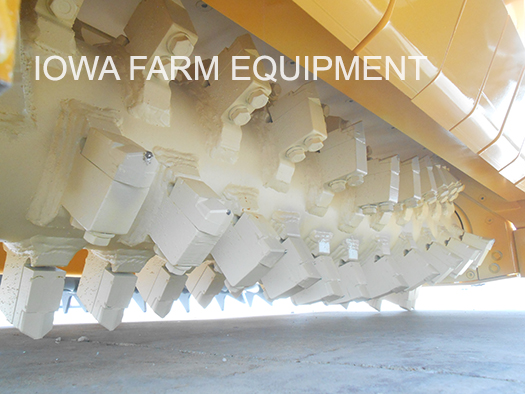

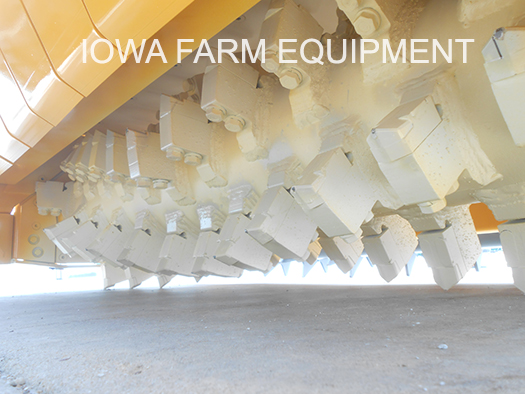

  • Reinforced Rotor, 19" Diameter with Peaks.
  • Rotor with "HIGH RESISTANCE & WEAR RESISTANT STEEL".
  • Transmission Support & Idle Side Support Protection Rings.
  • Central Cardan with Safety Bolt (Tractor Side Fork 1-3/8" 6).
  • Single Lateral Transmission with Gears in Oil Bath (Double Lateral Trasmission for Models 1800, 2000, 2300).
  • Idle Side Support in Oil Bath (Models 1000, 1300, 1500).
  • Bearing Support with Special Seals, "Labyrinth Bearing Protection by Valentini."
  • Rear Containment Sheets & Selection Grids for Crushed Product that Can be Adjusted with a Mechanical Jack.
  • Protective Shroud Casing & Sledge on Outer Side.
  • Protective Counter Hood in "High Resistance & Wear Resistant Steel."
  • "By Valentini" Friction Phasing System (Models 1800, 2000, 2300).

SAFETY:

  • CE Safety Protections.
  • Front Protective Rails.
  • Anti-Intrusion Protections for Transport.

TRACTOR EQUIPMENT NOTES:

  • Variable Transmission or Super Gearbox.
  • Hydraulic Distributors Requested from 2 to 4.

Valentini Leon Series Tractor Rock Crushers

Valentini Commercial Grade Rock Crushers

Valentini L Series 3 Point Rock Crushers

Valentini Leon Series Tractor PTO Rock Crushers

Valentini Leon Series Tractor 3 Point Land Clearing Rock Crushers

Valentini Leon Series Tractor PTO Rock Crushers

Valentini Commercial Duty Rock Crushers

Valentini L Series Tractor Concrete Crushers

Valentini Leon Series Tractor Rock Crushers

Valentini L Series Tractor PTO Rock Crushers

Valentini L Series Tractor 3 Point Land Clearing Rock Crushers

Valentini Heavy Duty Rock Crushers

Valentini L Series Tractor 3 Point Rock Crushers

Valentini L Series PTO Rock Crushers

Valentini L Series Tractor PTO Rock Crushers

Valentini L Series Rock Concrete Crushers

Valentini L Series Tractor PTO Rock Crushers

Valentini L Series PTO Powered Stone Crushers

Valentini L Series Tractor PTO Rock Crushers

Valentini L Series PTO Powered Stone Crushers

Valentini Commercial Rock Crushers
Valentini L1500 Rock Crusher in Red on an Antonio Carraro Tractor

Valentini L Series PTO Rock Crushers

Valentini Leon Series PTO Rock Crushers

Valentini L Series Tractor PTO Rock Crushers

Valentini L Series PTO Powered Stone Crushers

Valentini L Series Tractor PTO Rock Crushers

Valentini Leon Series 3 Point Rock Crushers

Valentini Leon Series Tractor Rock Crushers

Valentini Leon Series Tractor PTO Rock Crushers

Valentini L Series PTO Rock Crushers

Valentini Leon Series Road Preparation Rock Crushers

Valentini Leon Series Land Clearing Rock Crushers

Valentini Leon Series Road Preparation Rock Crushers

Valentini Leon Series Land Clearing Rock Crushers

Valentini L Series Tractor Land Clearing Rock Crushers

Valentini Leon Series 3 Point Concrete Crushers

Valentini Leon Series Tractor Rock Crushers

Valentini 3 Point Road Preparation Stone Crushers

Valentini 3 Point Road Preparation Rock Crushers

Valentini Leon Series 3 Point Road Preparation Rock Crushers

Valentini L Series Tractor PTO Land Clearing Rock Crushers

Valentini Leon Series PTO Road Preparation Rock Crushers

Valentini Leon Series Road Preparation Rock Crushers

Valentini Leon Series Tractor 3 Point Rock Crushers

Valentini Leon Series PTO Road Preparation Stone Crushers

Valentini Leon Series Road Preparation Stone Crushers

Valentini Leon Series Tractor 3 Point Stone Crushers

Valentini L Series Road Preparation Stone Crushers

Valentini Professional Duty Stone Rock Crushers

L/FL SERIES ROCK/STONE CRUSHER SPECIFICATIONS
MODEL 1000 1300 1500 1800 2000 2300
Tractor Horsepower Required 70 - 110 HP 80 - 110 HP 90 - 110 HP 110 - 170 HP 110 - 170 HP 110 - 170 HP
Rotor 323 RPM 328 RPM
Working Width 42" 52" 62" 72" 82" 92"
Overall Width 51" 61" 71" 82" 92" 101"
Teeth** 103 131 159 186 214 241
Working Depth on Non-Passive Surfaces
(e.g. Asphalt, Sheets of Granite, etc.)
3"
Working Depth on Passive Surfaces
(e.g. Dirt, Gravel, Sod, etc.)
7"
Weight 1,742 lbs. 2,072 lbs. 2,535 lbs. 3,197 lbs. 3,527 lbs. 3,880 lbs.
**Net Additional Teeth to Balance the Rotor
Specifications & Designs Are Subject to Change Without Notice
