Valentini King Series 3-Point Power Harrows

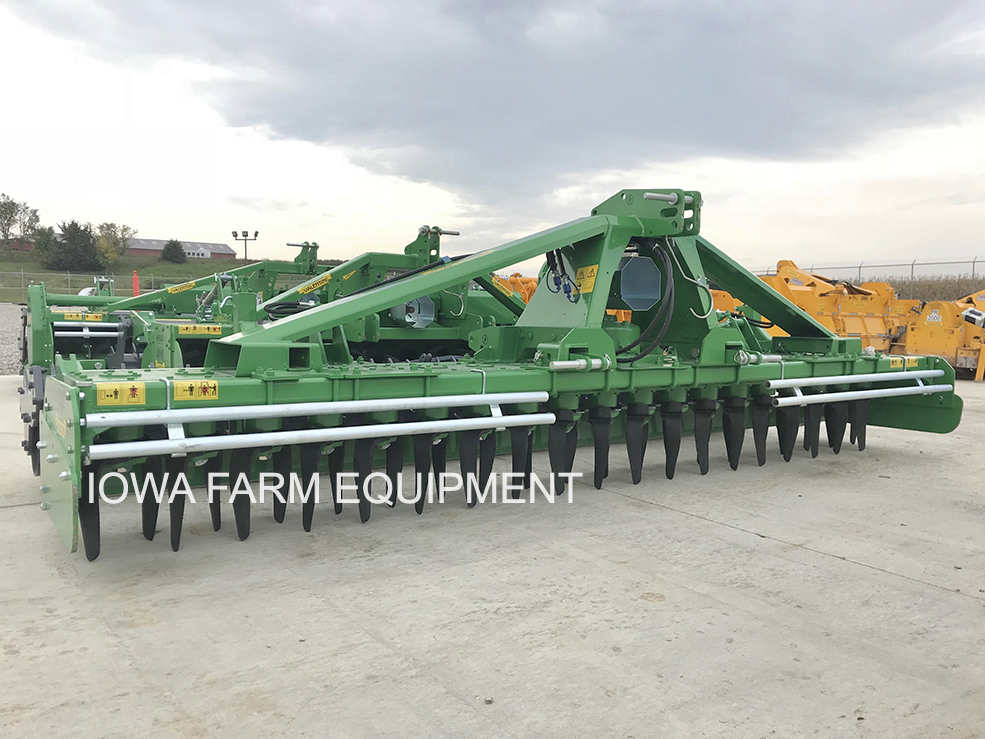

Valentini King Series Power Harrow
'KING' SERIES POWER HARROWS FOR 100-230HP(PTO) TRACTORS

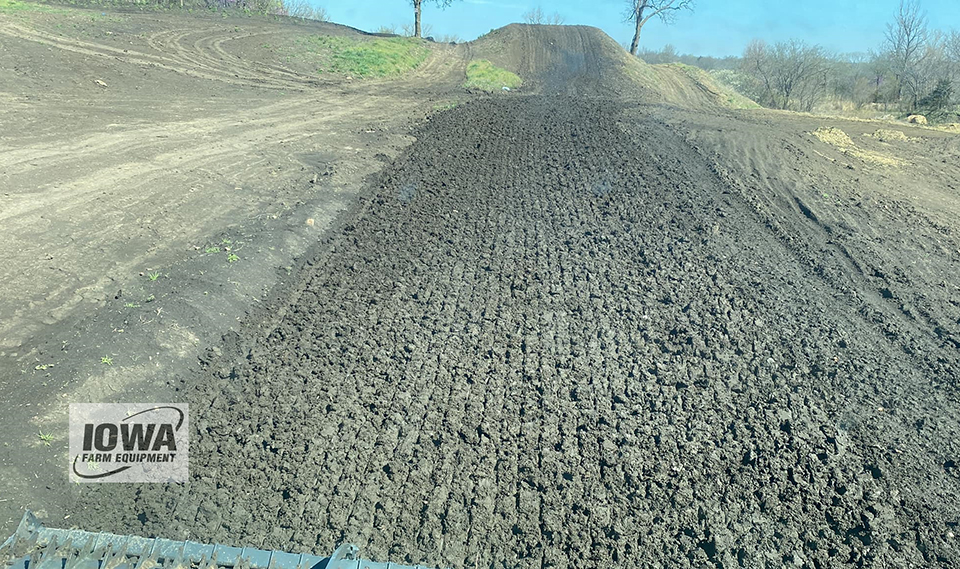

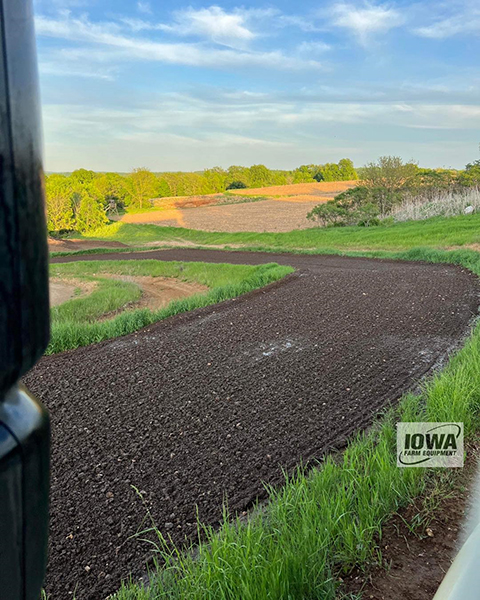

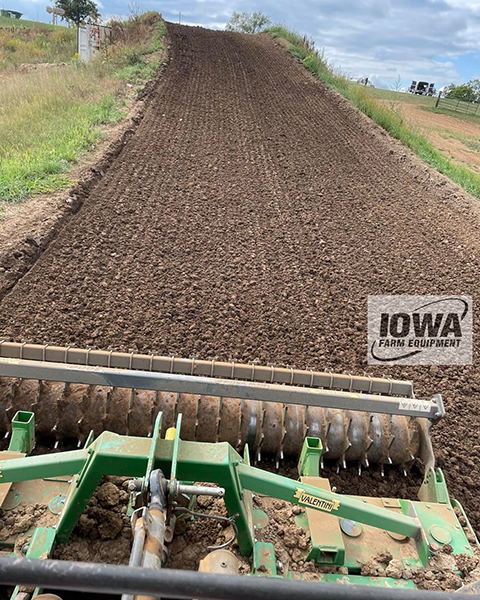

As with ALL Valentini Power Harrows, the King Series Is Quick-Hitch Compatible, and has been providing Excellent Soil Conditioning & Seed Bed Preparation in all types of soils - without inverting the soil, leaving nutrients on the top layer, leaving weed seeds deep & dormant, and not inverting moist substructure soils, preventing unwanted loss of moisture! The results have been proven in applications varying from Agricultural Use, to Construction Applications, to Landscaping Services, and in some of the most unconventional settings, Valentini has proven to have Bullet Proof Reliability, while producing Excellent Results in one pass! Whether your ground conditions have Standing Vegetation, or Imbedded Residue, Rocks, Stones or Hard Dirt Clods, expect to get the results you want with Valentini Power Harrows.

STANDARD FEATURES

  • Quick Hitch Compatible, Cat 3, 3-Point Hitch.
    • Floating Pull Arm Hitches
  • 1000RPM Large Stump Gearbox.
  • Two Blades Per Rotor.
    • Quick Attach Blades Standard on King, Maxi-D & Mammut Series.
  • 9" Spacing Between Rotors Provides Highest Population of Blades.
  • Heat Treated, Ultra-Hardened Central & Side Gears, and Blade Holders.
  • Oil Bath Transmission (Top Drive Enclosure) & Gear Box.
  • Side Skirts for Containment are adjustable.
  • Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!

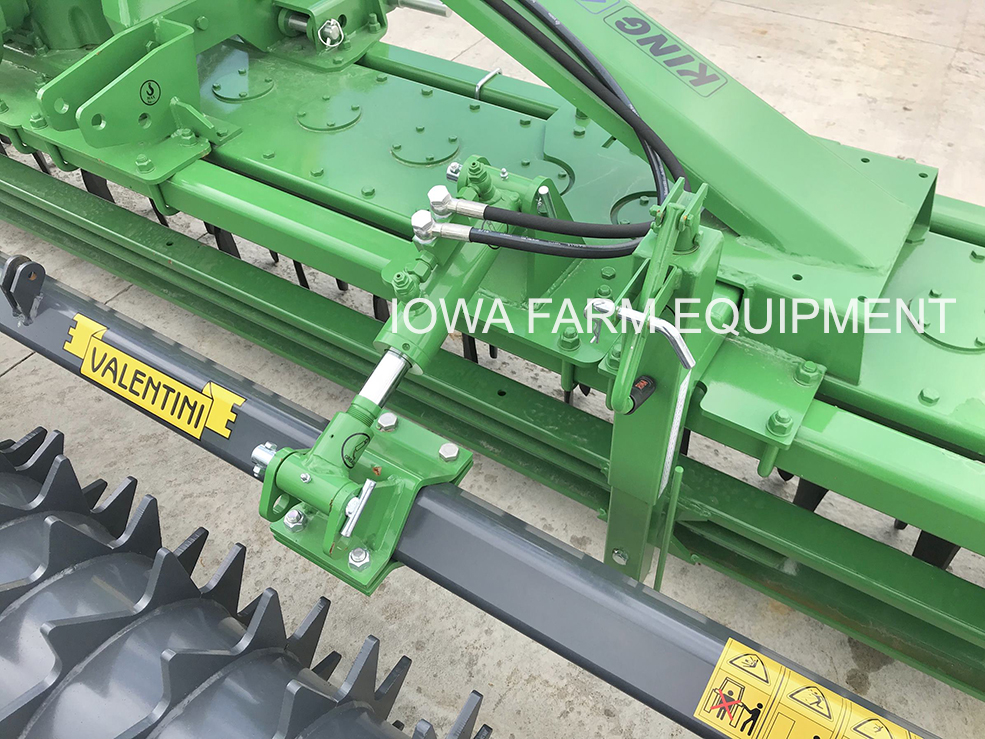

  • Manually Adjusted Rear Rollers (working depth) via Rear Corner Pin-Adjustments.
    • Optional Adjustment Methods.
      • Manual Hand Crank or Hydraulic Adjusting Kit for Infinite Travel Adjustment.
  • Safety Guards.

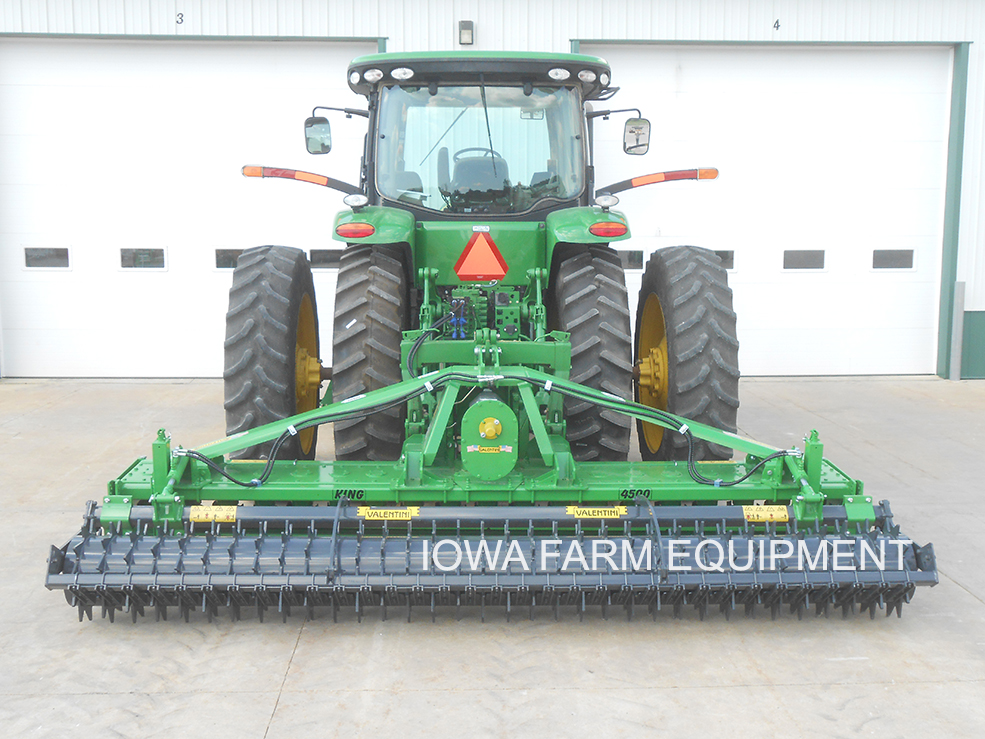

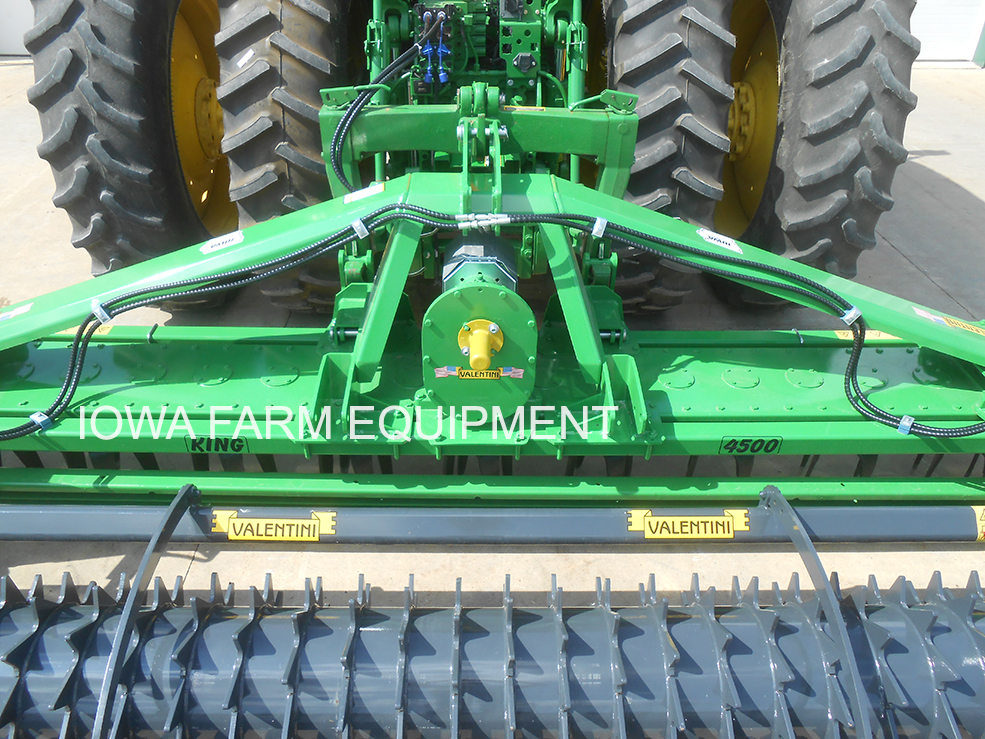

Valentini King Heavy Duty Tillage Harrow
Prince 4000 P-Harrow w/Man.Adj. Packer Roller & Rear 3-Pt Hitch

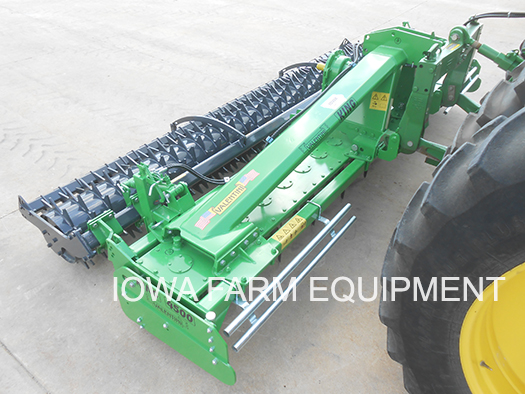

Valentini King Heavy Duty 3 Point Power Harrow
Prince 4000 P-Harrow w/Man.Adj. Packer Roller & Rear 3-Pt Hitch

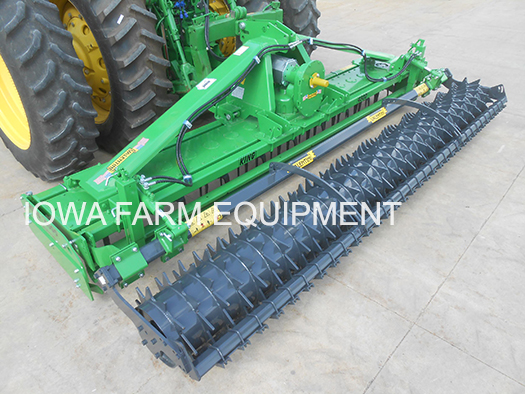

Valentini King Series PTO Driven Power Harrow
Prince 4000 Power Harrow with Manually Adjusted Packer Roller

Accessories

Valentini King Power Harrow Plowshares
FRONT CORNER PLOW SHARES
Enables deeper penetration of Side Plates.
(Plate style is effective with high crop residue)

Valentini King Power Harrow Side Rigging Discs
FRONT CORNER DISCS
Enables deeper penetration of Side Plates.

Valentini King Power Harrow Track Eradicator
TIRE TRACK ERADICATOR

OPTIONAL REAR ROLLERS
Provides Superior Working Depth Adjustment & Soil Conditioning.
Available with Manual or Hydraulic Adjustment.

Valentini Hermes Roto Tiller Cage Roller
CAGE ROLLER
Shown on Z-Series Tiller w/Hyd. Depth Adjustment
Also Shown in Second Video Above

Valentini Hermes Roto Spiral Roller
SPIRAL ROLLER
Shown on Maxi-D Power Harrow with Hydraulic Depth Adjustment

Valentini Hermes PTO Powered Tiller Packer Roller
PACKER ROLLER
Shown on A-Series Tiller w/Manual Depth Adjustment
Also Shown in First Video Above

Valentini Rotary Tiller Basket Roller
BASKET ROLLER
Shown on U-Series Tiller w/Manual Depth Adjustment

Valentini Roto Tiller Flat Roller
SMOOTH ROLLER

Additional Rollers Available (photos not available):
  • Smooth Roller
  • Blade Roller
  • Spike Roller
  • Toothed Roller

KING SERIES POWER HARROW SPECIFICATIONS
MODEL 2500 3000 3500 4000 4500
Tractor Horsepower Required 100 - 230 HP 110 - 230 HP 130 - 230 HP 150 - 230 HP 180 - 230 HP
Rotor 358 RPM
Working Width 102" 119" 136" 153" 171"
Overall Width 104" 122" 139" 156" 173"
Number of Blades 22 26 30 34 38
Working Depth 11"
Weight with Packer Roller 2,625 lbs. 3,074 lbs. 3,525 lbs. 3,974 lbs. 4,422 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
