Valentini Iris Series 3-Point
Stone, Vegetation & Residue Buriers

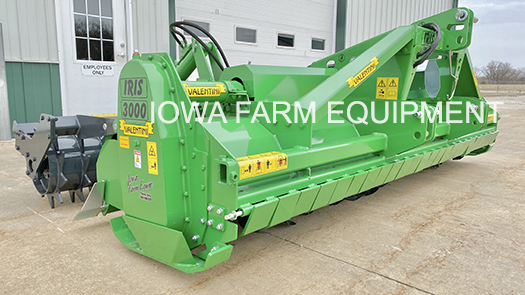

Valentini Tractor PTO Iris Stone Burier Tillers Valentini 3 Point Iris Stone Burier Tillers
Iris 2000 Burier with Mesh Roller Inverting/Burying Thick Cover Crop

As with ALL Valentini Buriers, the ‘Iris' Series is Quick-Hitch Compatible and has been Providing Excellent Residue Burying & Surface Inversion while Achieving Superior Seed Bed Preparation and Finish Grading Results in All Types of Soils & Soil Conditions. In the sample video (below), whether it’s the Large, Deeply Packed Gravel, or the Thick Stand of Canary Grass, the Burying Results are Obvious, and this Excellent Performance is Achieved with the Efficiency of One Pass! Along with Bullet Proof Reliability, Several Options are Available to Enhance the One Pass Efficiency of the Valentini Buriers! For Ag Applications; Bed Formers/Elevated Bed Shapers, and a Variety of Rear Rollers are Available to Contribute to the One Pass Efficiency! For Grading Applications, a Variety of Rear Rollers, Providing Features from Working Depth Control, to Surface Compaction, to Surface Finishing, to Rollers for Wet/Muddy Soil Conditions are Available.

STANDARD EQUIPMENT:

  • Quick Hitch Compatible, Cat 2, 3-Point Hitch.
  • 540RPM Large Sump Gearbox.
  • Floating Pull Arm Hitches.
  • Oil Bath Side Gear Drive.
  • Two Unique Scraper Blades on End Flanges Protect Seals & Prevent Vegetation Wrapping.
  • Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
  • Skid Shoes for Working Depth Adjustment.
  • Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption.
  • Front & Side Safety Guards for Personnel & Equipment Protection.


Iris 2000 Burier with Mesh Roller

Valentini Iris 2000 Stone Burier with Mesh Roller
Iris 2000 Burier with Mesh Roller

Valentini Iris 2000 Stone Burier with Mesh Roller
Iris 2000 Burier with Mesh Roller

Valentini PTO Powered Stone Burier with Mesh Roller

Valentini Tractor 3 Point Stone Burier with Mesh Roller
Iris 2000 Burier with Mesh Roller

Valentini Iris 2500 Stone Burier with Mesh Roller
Iris 2500 with Mesh Roller

Valentini Iris 2500 Stone Burier Tiller with Mesh Roller
Iris 2500 with Mesh Roller

Valentini Iris 2500 PTO Stone Burier with Mesh Roller
Iris 2500 with Mesh Roller

Valentini Iris 2500 3 Point Stone Burier with Mesh Roller
Iris 2500 with Mesh Roller

Valentini Iris Tractor PTO Stone Burier Tiller

Valentini Iris 3Pt Stone Burier Tiller

Valentini Iris 1800 Stone Burier Tiller with Greens Roller

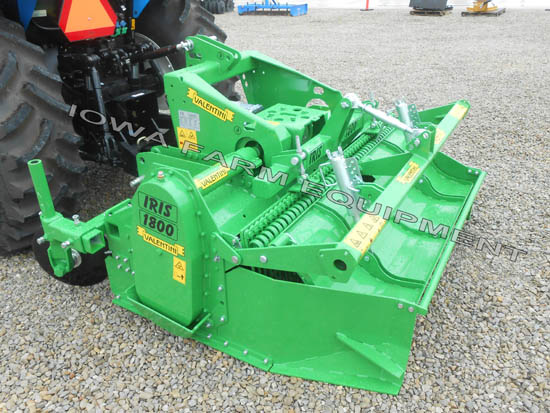

Iris 1800 Burier with Basket Roller

Valentini Iris 1800 PTO Stone Burier with Greens Roller

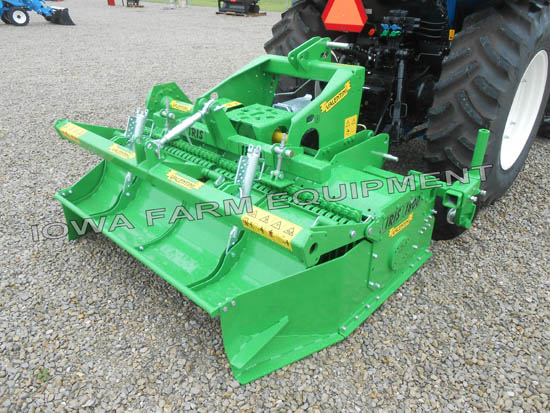

Iris 1800 Burier with Basket Roller

Valentini Iris 3 Point Stone Burier Tiller

Accessories

Valentini King Power Harrow Plowshares
FRONT CORNER PLOW SHARES
Enables deeper penetration of Side Plates.
(Plate style is effective with high crop residue)

Valentini King Power Harrow Side Rigging Discs
FRONT CORNER DISCS
Enables deeper penetration of Side Plates.

Valentini King Power Harrow Track Eradicator
TIRE TRACK ERADICATOR

OPTIONAL REAR ROLLERS
Provides Superior Working Depth Adjustment & Soil Conditioning.
Available with Manual or Hydraulic Adjustment.

Valentini Hermes Roto Tiller Cage Roller
CAGE ROLLER
Shown on Z-Series Tiller w/Hyd. Depth Adjustment
Also Shown in Second Video Above

Valentini Hermes Roto Spiral Roller
SPIRAL ROLLER
Shown on Maxi-D Power Harrow with Hydraulic Depth Adjustment

Valentini Hermes PTO Powered Tiller Packer Roller
PACKER ROLLER
Shown on A-Series Tiller w/Manual Depth Adjustment
Also Shown in First Video Above

Valentini Rotary Tiller Basket Roller
BASKET ROLLER
Shown on U-Series Tiller w/Manual Depth Adjustment

Valentini Roto Tiller Flat Roller
SMOOTH ROLLER

Additional Rollers Available (photos not available):
  • Smooth Roller
  • Blade Roller
  • Spike Roller
  • Toothed Roller

IRIS SERIES BURIER SPECIFICATIONS
MODEL 1300 1500 1800 2000 2300 2500 2800 3000 3500
Tractor Horsepower Required 40 - 80 HP 50 - 80 HP 55 - 80 HP 70 - 120 HP 90 - 120 HP 100 - 120 HP 110 - 180 HP 120 - 180 HP 140 - 180 HP
Working Width 53" 63" 73" 83" 93" 102" 112" 122" 142"
Overall Width 61" 71" 81" 91" 100" 110" 128" 138" 158"
Number of Flanges 30 36 42 48 54 60 66 72 84
Working Depth 10"
Rotor 239 RPM 230 RPM
Blades/Points Rotor 323 RPM 290 RPM
Weight with Packer Roller -- 2,048 lbs. 2,291 lbs. 2,535 lbs. 2,048 lbs. 2,291 lbs. 2,535 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
