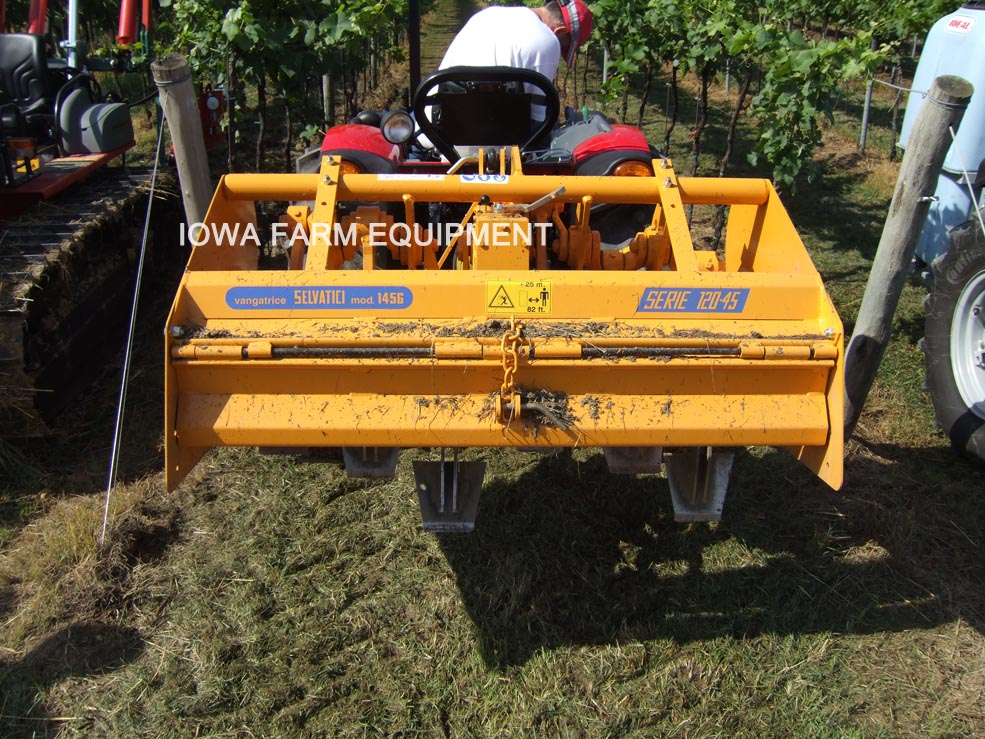

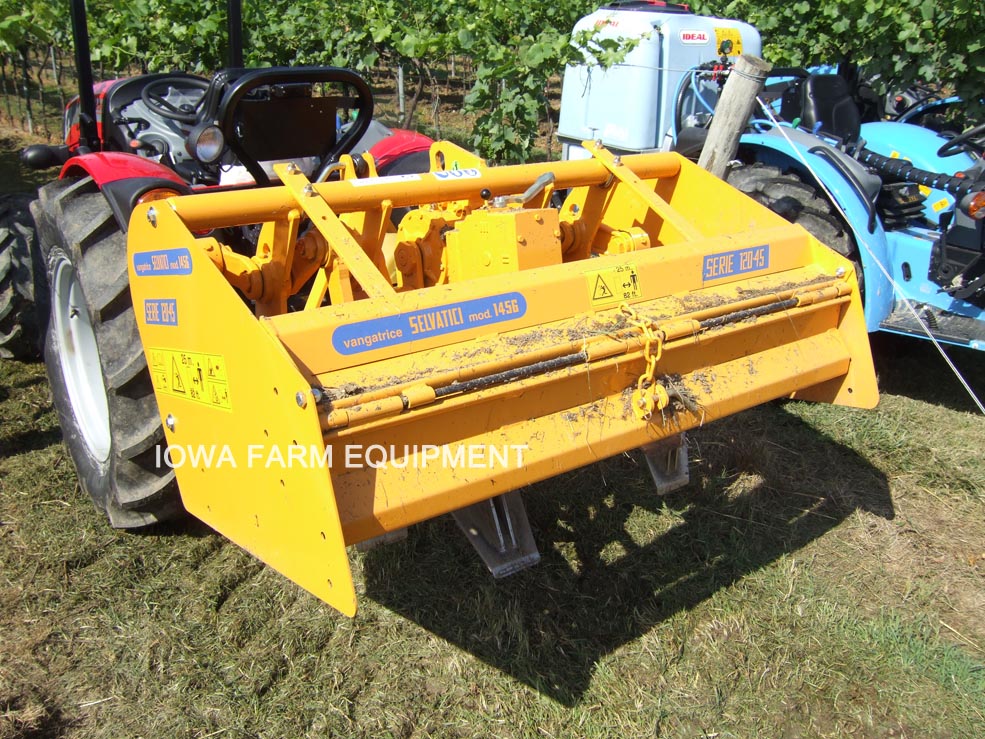

The J120-45 Series Spader Provides Highly Concentrated Soil Penetrations Up to 10” Deep, Efficiently, in a Single Pass, Even With Sub-Compact Tractors As Small As 20HP. Working Widths Can Be As Narrow As 32”, Accommodating Smaller Tractors, and Those Narrow, Restricted Working Widths; Such As Vineyards & Cane Berry Aisles, Elevated Beds, Orchard & Nursery Rows, and Various Other Narrow Working Requirements, Particularly For Making Narrow, Deep Spaded Strips For Erosion Control On Rolling, Erodible Hillsides.
STANDARD FEATURES:
| J120.45 SERIES SPECIFICATIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | J804 | J904 | J1004 | J1104 | J1206 | J1306 | J1456 | J1606 | J1608 | J1808 |
| Working Width | 32" | 35" | 39" | 43" | 47" | 51" | 57" | 63" | 63" | 71" |
| Overall Width | 34" | 37" | 41" | 45" | 49" | 53" | 59" | 65" | 65" | 73" |
| Minimum HP | 20HP | 20HP | 20HP | 22HP | 25HP | 25HP | 28HP | 30HP | 32HP | 35HP |
| Maximum HP | 45HP | |||||||||
| Maximum Working Depth | 10" | |||||||||
| Number of Spades | 4 | 6 | 8 | |||||||
| Gearbox Speeds | 145, 167 & 206RPM's | |||||||||
| Weight | 739 lbs. | 750 lbs. | 761 lbs. | 783 lbs. | 948 lbs. | 970 lbs. | 992 lbs. | 1,014 lbs. | 1,146 lbs. | 1,191 lbs. |
| J120.45 SERIES SPECIFICATIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | J804 | J904 | J1004 | J1104 | J1206 | J1306 | J1456 | J1606 | J1608 | J1808 |
| Working Width | 32" | 35" | 39" | 43" | 47" | 51" | 57" | 63" | 63" | 71" |
| Overall Width | 34" | 37" | 41" | 45" | 49" | 53" | 59" | 65" | 65" | 73" |
| Minimum HP | 20HP | 20HP | 20HP | 22HP | 25HP | 25HP | 28HP | 30HP | 32HP | 35HP |
| Maximum HP | 45HP | |||||||||
| Maximum Working Depth | 10" | |||||||||
| Number of Spades | 4 | 6 | 8 | |||||||
| Gearbox Speeds | 145, 167 & 206RPM's | |||||||||
| Weight | 739 lbs. | 750 lbs. | 761 lbs. | 783 lbs. | 948 lbs. | 970 lbs. | 992 lbs. | 1,014 lbs. | 1,146 lbs. | 1,191 lbs. |
