Selvatici Series 120.35 Tractor 3-Point Soil Spading Machines

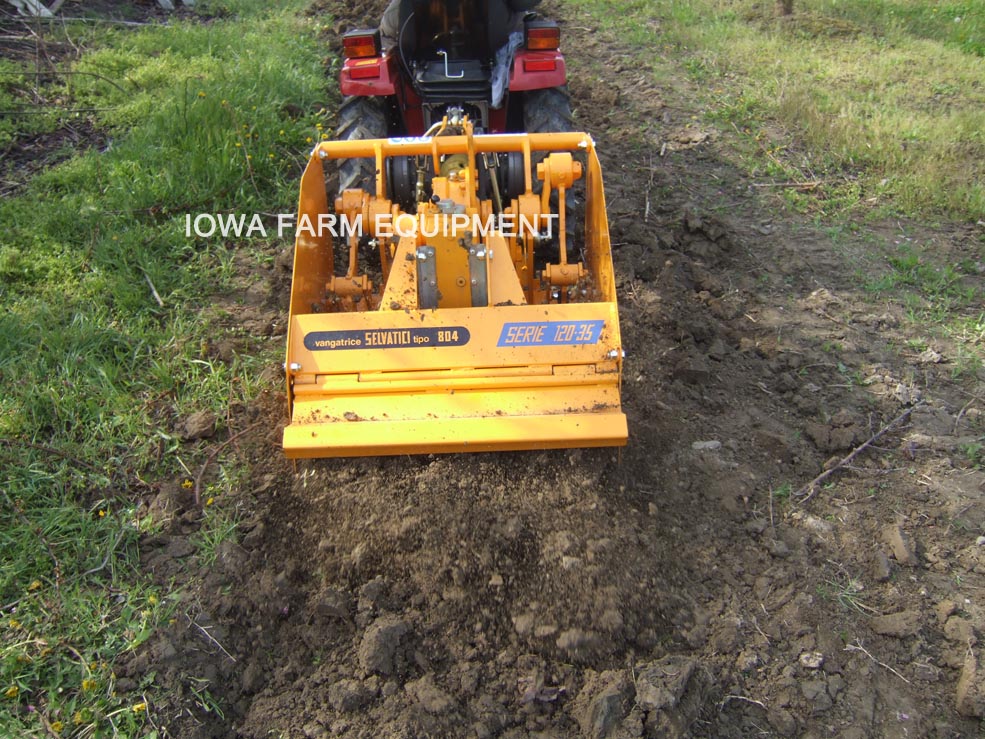

Selvatici 120.35 Tractor PTO Spading Machine

Light, Compact Spading Machines for Small Tractors with Lever Gearbox.

120.35 SERIES SOIL SPADER STANDARD FEATURES:

  • 3-Point Hitch Cat. I.
  • Lever-Shift, 3-Speed Gearbox (M6, 2 Helical) the Gear are Always Directly Coupled (Selvatici Patented), Thus Guaranteeing Maximum Efficiency & Work Life. PTO 540 = I 145 II 167 III 206 RpM.
  • PTO Shaft with Protection.
  • Prelubricated Sealed Bearings without Maintenance.
  • Adjustable Hood.
  • Adjustable Spillway.
  • Slides for Depth Adjustment.
  • Options Available:
    • Prelubricated bearings of connecting rods.
    • Reverse rotation PTO.

Selvatici Tractor PTO Spading Machines

Selvatici Tractor Tilling Spading Machines

Selvatici Spading Machine Standard Features:

  • Selvatici Spading Machines acheive land drainage and reduction of the risk of soil being washed down off slopes, since the cultivated soil does not rest on the hard layer. This avoids a typical negative characteristic of land worked using other tilling equipment.
  • Working of the soil is homogeneous throughout the width of the machine, turning the soil in a uniform manner so as to assist in ploughing in the fertilizer, manure or stubble.
  • The Selvatici Spading Machines yield tilled soil with a flat surface and clods that are regular in size, so that it is often possible to proceed with sowing or planting immediately. The spades enter the soil one at a time, allowing a minimum use of tractor power, and they last longer because they only work in descent.
  • The Selvatici Spading Machines are the only implement that doesn't form compact and tight soil beds where it passes. Consequently, the roots are not hindered from growing, nor is moisture hindered from getting to the roots. Priming in the slopes, it does not CAUSE the dangerous phenomena of soil erosion.
  • Selvatici Spading Machines reduce fuel consumption compared to conventional tilling processes like plowing, ripping and milling.
  • Selvatici Spading Machines are the only implement always resulting in the clod turning over and allows the soil to air quickly, eliminating noxious weeds with their roots.
  • Selvatici Spading Machines are the only implement requiring no tractive or braking effort from the tractor, meaning that it can also be used on steep grades without any inconvenience and in a safe manner.

Selvatici Tractor PTO Rotary Spaders

Selvatici Tractor 3 Point Spading Machines

Selvatici Tractor 3 Point Rotary Spading Machines

Selvatici Compact Tractor Tilling Equipment

Selvatici Compact Tractor Spading Machines

Selvatici PTO Powered Rotary Spading Machines

Selvatici Compact Tractor Tilling Equipment

Selvatici Tillage Spading Machines

Selvatici Tractor PTO Powered Rotary Spading Machines

120.35 SERIES SPECIFICATIONS
Model M804 M904 M1004 M1206 M1306 M1456
Working Width 32" 35" 39" 47" 51" 57"
Minimum HP 15 HP 18 HP 20 HP 25 HP
Maximum HP 35 HP
Number of Spades 4 6
Weight 540 lbs. 551 lbs. 562 lbs. 695 lbs. 706 lbs. 728 lbs.
Specifications & Designs Are Subject to Change Without Notice
