Commercial, Multi Purpose Peruzzo Bull Cross 3-Point Ditch Bank Flail Mowers
Commercial Duty Quality, Commercial Duty Performance & Commercial Duty Features with U.S. Parts & Tech Support!
Peruzzo Hydraulically Articulated, Multi-Purpose Commercial Ditch Bank Flail Mowers For 60-140HP, 540RPM Tractors: All The Best Features, Superior Cuts & Safest Operation, Make Them The Best Performing & Most Efficient Flail Mower!
Peruzzo Commercial Flail Mowers Provide A Better Finish Cut Than Rotary Finish Mowers, They Provide A Better Rough Cut Than Rotary Rough Cut Mowers & They Produce These Superior Results In An Efficient Single Pass!!!
Peruzzo Flail Mowers Are Equipped With 16" Dia. Severe Service Duty Rotors That Are Highly Populated With Large, Forged & Hardened Steel Hammer Blades - Peruzzo Flail Mowers Always Have the Highest Population of Blades to Provide the Best Possible Cut & Reduce the Burden on Your Tractor!
Peruzzo Mower Gearboxes Include an Over-Running Clutch, Which Provides Two Advantages:
First, Easy Alignment & Attachment of the Mowers PTO Shaft to the Tractors PTO Shaft:
The O.R. Clutch Enables you to Freely Spin the PTO Shaft & Gearbox for Alignment!
Second, Smooth Shut Down:
The O.R. Clutch Allows the Mower Gearbox to Free Wheel to a Stop, Eliminating Abrupt Shutdowns & Wear of the PTO Brake!
Peruzzo 'Bull Cross Series Ditch Bank Flail Mowers' Are Equipped With Severe Duty ‘Series 8’ PTO Shafts. The Series 8 PTO Shafts are Suitable For Higher HP Ratings & 'Severe Service Duty' Usage!
Peruzzo Gearboxes Also Include an Easily Visible 'Oil Level Sight Glass' for Clean, Convenient & Tool Free Gearbox Oil Level Checking!
Hydraulic Offset & Head Positioning Allows for 'ON-THE-FLY' Positioning!
'Raise & Lower Cylinder' Has Three Unique Features for Performance Efficiency, for Mechanical Protection of the Mower, and for Operator Safety:
Adjustable Flow Control Valve for Hydraulic Speed Control:
Prevents Shock Loads From Operators Abrupt & Rapid Downward Deck Rotation (then hammering our precious earth), or Abrupt & Rapid Upward Deck Rotation (then hammering the mechanical connections):
Set This Valve to a Slower Setting Until You've Mastered Feathering the Controls to Rotate the Deck 90° Upward, or 60° Downward! Once You've Got it, You Can Adjust the Flow Control Valve for Faster Operation!
Horizontal (Left to Right) Mower Deck Oscillation for Automatic Contour Adjustment:
The Cylinder Barrel is Pinned to a Clevis Bracket, Which is Secured to the Mower Deck via a Bracket With an Oval Pin Opening for Oscillation Travel.
Safety Locking Valve for More Personnel & Equipment Safety!
Lower Right Rear of 3-Pt Frame Has a Removeable Pin for 'Lock-In-Place' Operation (when mowing level, predictable terrain), or Remove the Pin for Limited & Self-Resetting Breakaway Protection - Also for Front to Rear Deck Oscillation (for following uneven terrain).
Hydraulic Breakaway:
The 'Extend & Retract Cylinder' Has a Relief Valve for Limited & Self-Resetting Breakaway
A Large Deck Enclosure Accommodates Higher Volumes of Material for Superior Finish Results, Superior Mulching Results, Less Burden Transferred to the Tractor & Better Ground Speeds. It's Also Large Enough for the Rear Roller to be Within the Footprint of the Deck (instead of protruding out beyond the back).
The Large Deck Enclosure is Also Large Enough to Have an Adjustable Mulching Door (placed above the roller & behind the rear deflector)!
Full Double Deck Shell Protects the External Shell From Rocks & Other Internal Projectiles:
Rear Roller Also Includes a Full Width Rubber Deflector & Mud Scraper.
Under Deck, Mulching Counter Blade Ensures Reduction of Larger Clippings & Further Reduces the Smaller Ones.
Dual Top Link Pin Holes:
One Oval for (more) Front to Rear Deck Oscillation.
One Standard Round Hole for Rigid & Level Deck Suspension.
Multiple Advantages of This Offsetable Mower Over Static, Center Mounted 3-Point Mowers:
If You're Mowing Along a Fence Line, Tree Line, Building, etc., Instead of Getting Your Entire Tractor Along Side of the Fence or Building (and risk scraping your tractor tires or snagging & damaging trees, posts, fencing, buildings, etc.), You Can Simply Keep the Offset Part of the Mower Close to the Edges You Want to Mow and Prevent Any Damage to the Tractor, the Trees, Fencing, Walls, etc. Snagging Posts, Trees or Other Secured Objects Can Also Damage the 3-Point Linkage on the Mower or Even the Pull Arms & Top Link of Your Expensive Tractor.
Much, Much Better Visibility: If the Edge of Any Mower is Flush With the Sidewall of Your Tractors Tire, Forget About Visibility! You'll be Cutting With Your Tractor Tire as a 'Guide', Which is ok in Open Areas, But Again, When You're Mowing up Against Obstacles, You Want Visibility, and the Offset Feature Will Provide That. It Will Also Eliminate the Need to Look Back Over Your Shoulder to See the Mower Deck. A Simple Glance to Your Right Gives You Visibility of the Outer Mowing Edge.
One Of The Many Multi-Purpose Characteristics of Peruzzo Flail Mowers Is That They Provide A Superior Rough Cut (compared to ANY 'rotary rough cut mower') & A Superior Finish Cut (compared to ANY 'rotary finish cut mower')! Plus With the 'Forged & Hardened' Hammer Blades on This Flail Mower, You Can Cut 4" Diameter Material & Still Get A Superior Finish Cut Too!
Peruzzo Flail Mowers Are The Safest & Most Efficient Mowers Available:
With Peruzzo Flail Mowers, the Possibility of Discharging Dangerous Projectiles is Dramatically Reduced Compared to Conventional Rotary Mowers, and with the Reduced Deck Depth & Weight, They’re the Easiest for You & Your Tractor to Handle! Plus, the Superior ‘Single-Pass’ Cut of Peruzzo Flail Mowers Provides New Efficiencies by Eliminating Multiple Passes For Excellent Results!
Use the Transport Lock When Transporting From Place to Place to Prevent Excess Stress on Supporting Linkages.
Mower Ships Assembled & Ready To Use:
This Means No Assembly Headaches from Poor Instructions, No Missing Parts & Associated Delays, No Special Tools, No Knuckle Busters, No Lubrication, No Gearbox Oil Filling & No Waiting Until It's Assembled Before First Use!
Mower Ships with Severe Duty Series 8, 540RPM PTO Shaft!
All of These Excellent Features Work Together to Outperform Your Expectations in Rough Cutting, Mulching & Finish Cutting Applications, With Beautiful, Single Pass Results, With Efficient Ground Speeds & With Ease of Demand on Your Costly Tractor & it's Fuel Tank! Most of All, it Makes Mowing Fun Again!

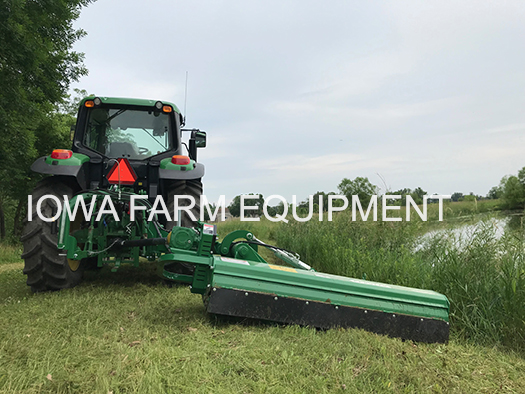

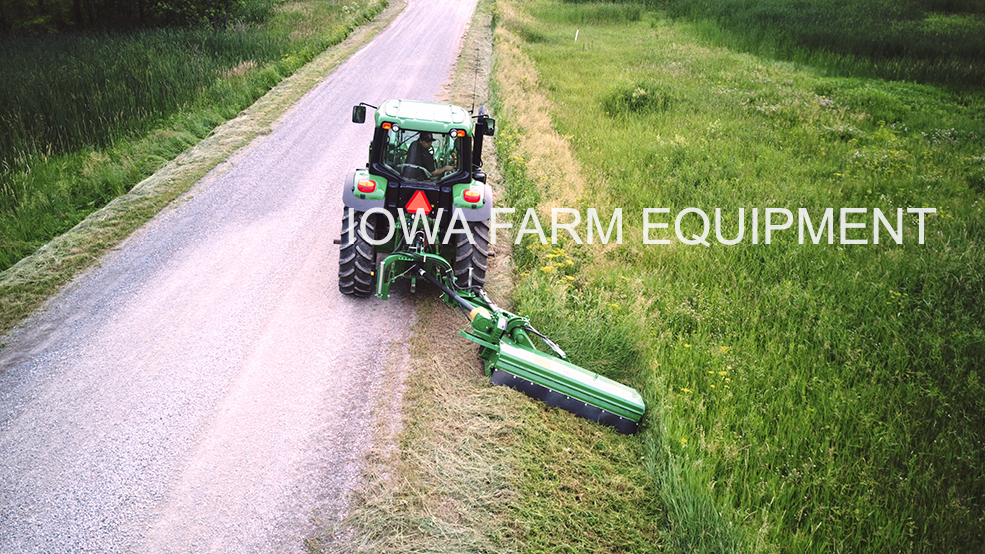

Peruzzo Bull Cross 2200 Flail Mower in Right Offset Position Mowing a Berm

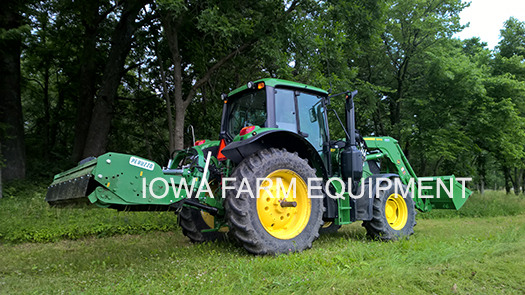

Peruzzo Bull Cross 2200 Flail Mower Retracted to Center Mounted Position on a John Deere 6130M
Top View of Retracted & Offset Positions
Bull Cross 2000 Angled Partially Downward for Ditch Bank Mowing Yes, We Have These Excellent Machines in Orange Too!

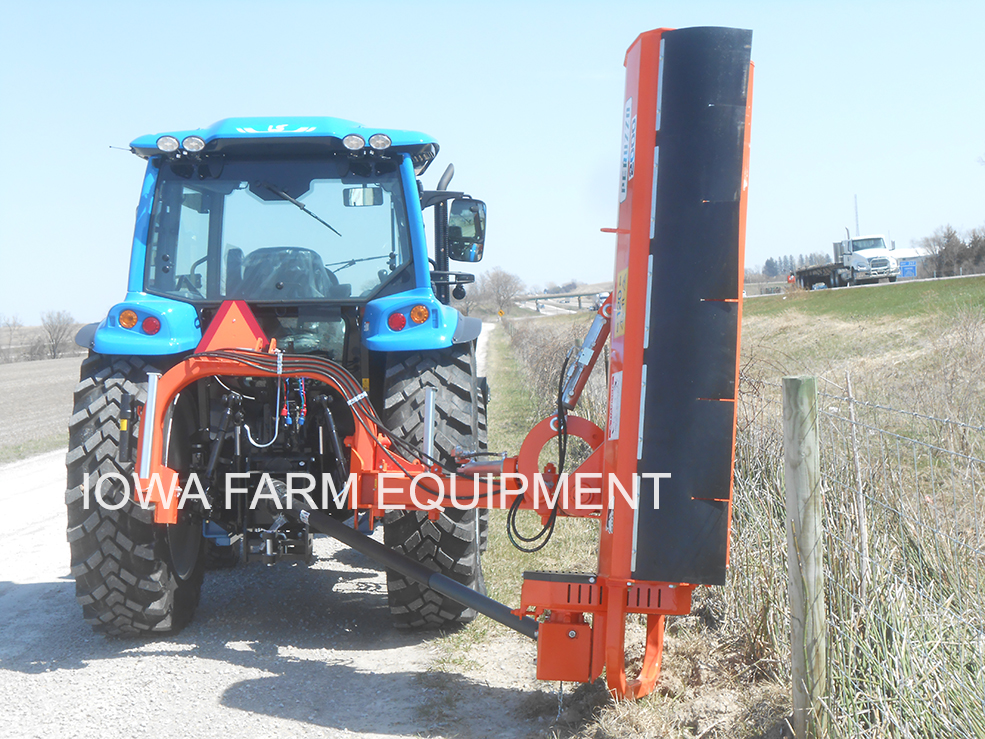

Bull Cross 2000 Angled Upward 90° for Trimming Fence Lines & Tree Overhangs Also Convenient for Inspecting, Sharpening, or Replacing Blades!

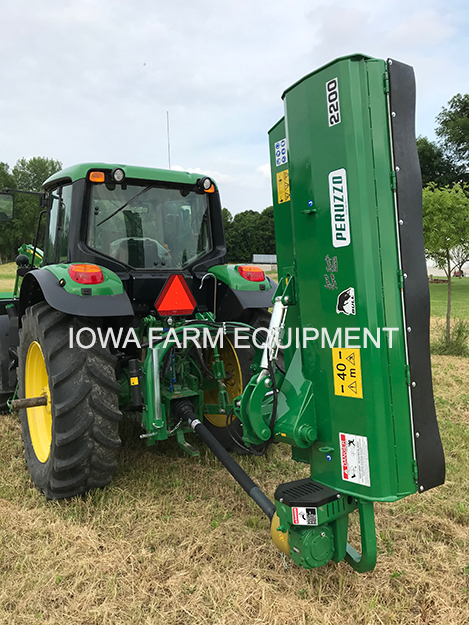

Peruzzo Bull Cross Ditch Bank Flail Mower Elevated 90°. Offset To Right Side For Fence Line, Hedge & Shrub Grooming. Elevate It Further Up With Tractor's 3-Pt & Cut Back Tree Overhangs. Along With These Unique ‘Elevated’ Features, The Durable Gearbox Guard Is Also A Stand – In The Elevated Position, Set It Down On The Guard & Now All Under Deck Inspection, Service & Maintenance Is Safe, Ergonomically Friendly & Efficient! No More Hoisting Up Or Flipping Over The Deck, No More Crawling Underneath The Deck, Etc! Peruzzo Ditch Bank Flail Mowers Provide Unparalleled Efficiency & Beautiful Single Pass Results, As Well As The Best Maintenance & Service Features!
Current ‘Full Height’ Heavy Duty Rear Rubber Deflector Replaced Those Shown in Other Photos
FEATURES

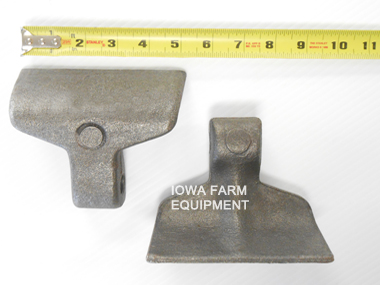

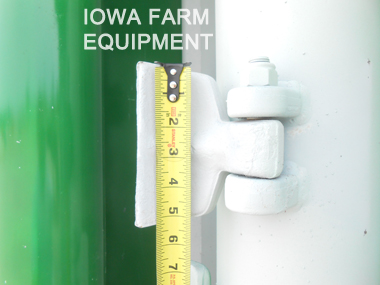

Forged & Hardened Solid Steel Hammer Blades Weigh 3lb’s Each, and Last & Last & Last & Last & Last...Yes, We Did Say That They Last! In Addition to Superior Finish & Rough Cutting Performance, Our Peruzzo Flail Mowers Also Have a Huge Payback With the Life Expectancy Of These Severe Duty Blades…Which We Rarely Sell Replacements of! Also, With the Ability to Turn The Mower Deck Upright, There’s No More Hoisting, or Crawling Under the Deck to Inspect, or Service the Deck – Just Rotate it Upright, Set it Down on the GearBox Guard & Walk Up to it For Inspection. If Cutting Performance Has Decayed (Usually Due to a Lot of Rocks), Walk Up to it With Your Grinder, Put a New Edge on the Worn Blades & Go Back to Work!!!
NOTE: Bull Cross Mowers Ship Factory Assembled & Ready To Use! This Means No Assembly Headaches From Poor Instructions, No Missing Parts & Associated Delays, No Special Tools, No Knuckle Busters, No Lubrication, No Gearbox Oil Filling & No Waiting Until It's Assembled Before First Use!
BULL CROSS DITCH BANK SERIES SPECIFICATIONS
MODEL
BULL CROSS 1800E
BULL CROSS 2000E
BULL CROSS 2200E
HP Range (Engine)
60 - 110HP
75 - 125HP
80 - 140HP
Working Width
70"
78"
86"
Overall Width
88"
96"
104"
Min. Tractor Weight
6,500lbs
7,000lbs
8,000lbs
Hitch
CAT 2
Hydraulic Outlets
Requires Two Sets
Number of Hammer Blades
16 (3.5lb)
18 (3.5lb)
20 (3.5lb)
Rotor RPM/Blade Speed
2250 / 105MPH
RPM
540
Cutting Capacity
4"-5" Dia.
Blade Swing Diameter
15-3/4"
Cutting Height Range
1/4" - 5"
Deck Thickness
3/8"
Side Plate Thickness
3/8"
Rear Roller Diameter
7-5/8"
Number of Drive Belts
4
Weight
1,695lb's
1,770lb's
1,965lb's
Weights are Less Pallets, Crates & PTO Shaft.
BULL CROSS DITCH BANK SERIES SPECIFICATIONS
MODEL
BULL CROSS 1800E
BULL CROSS 2000E
BULL CROSS 2200E
HP Range (Engine)
60 - 110HP
75 - 125HP
80 - 140HP
Working Width
70"
78"
86"
Overall Width
88"
96"
104"
Min. Tractor Weight
6,500lbs
7,000lbs
8,000lbs
Hitch
CAT 2
Hydraulic Outlets
Requires Two Sets
Number of Hammer Blades
16 (3.5lb)
18 (3.5lb)
20 (3.5lb)
Rotor RPM/Blade Speed
2250 / 105MPH
RPM
540
Cutting Capacity
4"-5" Dia.
Blade Swing Diameter
15-3/4"
Cutting Height Range
1/4" - 5"
Deck Thickness
3/8"
Side Plate Thickness
3/8"
Rear Roller Diameter
7-5/8"
Number of Drive Belts
4
Weight
1,695lb's
1,770lb's
1,965lb's
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
