ACMA 'P' Series 3-Point Premium Rotary Tillers with Seeder
All GEAR Side Drive in Oil Bath - No Belts, NO Chains & Double Skinned Body, All For Long, Trouble Free Life!

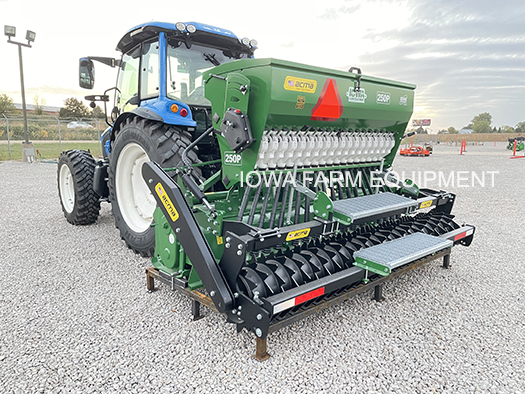

ACMA Model 250P Rotary Tiller with Seeder + Packer Roller
FOR 65-130HP TRACTORS
Heavy Duty Professional Premium Series, 93" to 122" Working Width ACMA 'P' Series, Cat 2, 3-Point, PTO Powered Rotary Tiller With XW (Extra-Wide) Packer Roller For 'On-The-Fly' Working Depth Control - Quick Hitch Compatible!
You Can Expect Excellent Assembly & Pre-Testing Along With European Engineering, Durability & Quality, Complimented With Excellent Performance & Efficiency That Contributes To Your Bottom Line!
TILLER STANDARD FEATURES:
ACMA Uses Heavy Duty Italian Made Gearboxes With Large Sumps For Cooler Operation & Longer Life!
Multi-Speed Gearbox Works Together With Tractors Ground Speed: Accommodating Older Tractors With Limited Low Speed Capabilities, Accommodating Newer Tractors With Lower Speed Controls, Both Accommodating Various Ground Conditions, Enabling 'Single Pass Efficiency' By Combining The Ideal Ground Speed With Ideal Desired 'Single Pass Results'!
4) Following Gearbox 'Rotor Speed' Settings Are Available:
Standard Configuration @540RPM with 4-Speeds:
155-174-195-218RPM's (Factory Set At Speed 3).
Optional Configuration @1000RPM with Single Speed of 287RPM's.
Upgrade Cost To 1000RPM Includes 1000RPM PTO Shaft.
Gearbox Gears Can Be Positioned For Various Speeds Without Emptying The Gearbox Oil By Tipping Tiller/Gearbox Back 90°.
Side Gear Drive System Is In An Oil Bath Gear Box.
Double Layer Deck Top, Each At 3/16" Thick!
Hydraulically Adjusted XW (Extra Wide) Packer Roller Provides Excellent Means of 'On-The-Fly' Depth Control (superior to skid shoes) & Also Provides Soil Conditioning! Hydraulic Adjust Kit Includes: Flow Control Valve & Premium Hoses (US or Euro Made!) With Spiral Guard Hose Protection!
Rotor 'Counter Flange Kit' Is Another Standard Feature, Minimizing Blade & Bolt Breakage In The Toughest & Rockiest Ground Conditions!
Rotor's 'End Flanges' Have One Straight Blade Each To Ensure Maximum Working Width & Minimizing Vegetation Wrapping On The Rotor Ends!
Multi-Position, Adjustable Rear Gates With Adjustable Built-In Shock Absorption:
Super Duty Rear Gates Are Durable Enough To Use For Finish Grading & Are Mechanically Linked To The 'Hydraulically Controlled Rear Roller' To Follow The 'On-The-Fly' Working Depth Positioning!
Wing Plates On Outside Corners Of Rear Gates Work To Level Any Ridges At The Outside Edges Of The Working Width!
Parking Stand & Rear Ridge Leveling Plates Are Standard.
Tiller Includes a 1-3/8", 6 Spline 540RPM, Shear Bolt Protected PTO Shaft!
Tiller & Seeder Ship Fully Assembled & Ready To Use!
Do it ALL in 'One Efficient Pass'. Keep Hours Off Your Expensive Tractor, Reduce Fuel Consumption, Reduce Maintenance Intervals, and Most Importantly, Recover Your Personal Time!
Suitable For Most All Seed Types, From Alfalfa to Corn & Beans.
Not Recommended For Warm Season Grasses.
230P:
16 Individual Drops Within 90" Wide Plate:

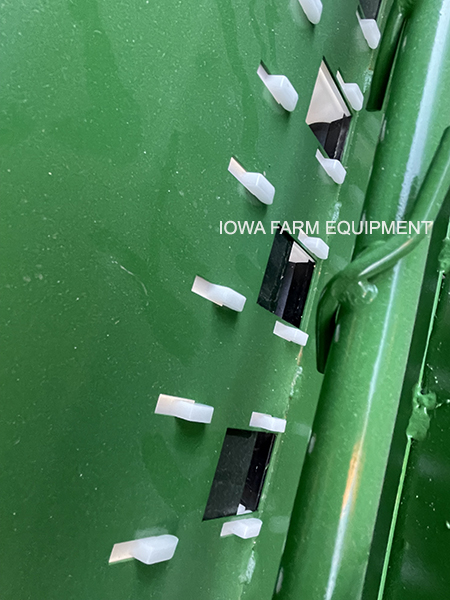

Hopper Has 16 'Port Openings' With Slide Gates (attached to Hopper) Which Are Individually Adjustable For Flow Control To Accommodate Various Seed Sizes & Types.

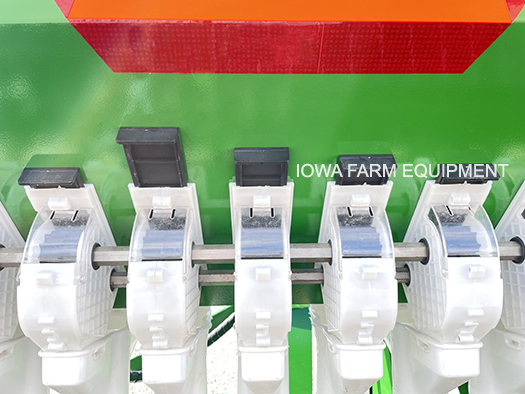

These 'Port Openings' Flow Into 16 Individual Seed Hoppers (white plastic wedge shaped) With Rotating 'Seed Selectors'. 'Seed Selector's' Are Individually Adjustable For Seed Size.
250P:
18 Individual Drops Within 102" Wide Plate:
Hopper Has 18 'Port Openings' With Slide Gates (attached to Hopper) Which Are Individually Adjustable For Flow Control To Accommodate Various Seed Sizes & Types.
These 'Port Openings' Flow Into 18 Individual Seed Hoppers (white plastic wedge shaped) With Rotating 'Seed Selectors'. 'Seed Selector's' Are Individually Adjustable For Seed Size.
300P:
20 Individual Drops Within 102" Wide Plate:
Hopper Has 20 'Port Openings' With Slide Gates (attached to Hopper) Which Are Individually Adjustable For Flow Control To Accommodate Various Seed Sizes & Types.
These 'Port Openings' Flow Into 20 Individual Seed Hoppers (white plastic wedge shaped) With Rotating 'Seed Selectors'. 'Seed Selector's' Are Individually Adjustable For Seed Size.
After These Individual Hopper 'Port Openings' & 'Seed Selectors' (In The Wedge Shaped Seed Hoppers) Have Moved & Sorted The Seeds, The Seeds Flow Into Each Drop Tube For Placement Into The Beautiful Seedbed Made by The Tiller, Then The Hydraulically Controlled Packer Roller Follows To Ensure Excellent Ground Contact For Maximum Germination!
Handle At Right End Of Hopper Opens & Closes Seed Flow at The Bottom Of Each Wedge Shaped Seed Hopper.
Handle At Left End Of Hopper Provides Speed Control For Seeding Rate.

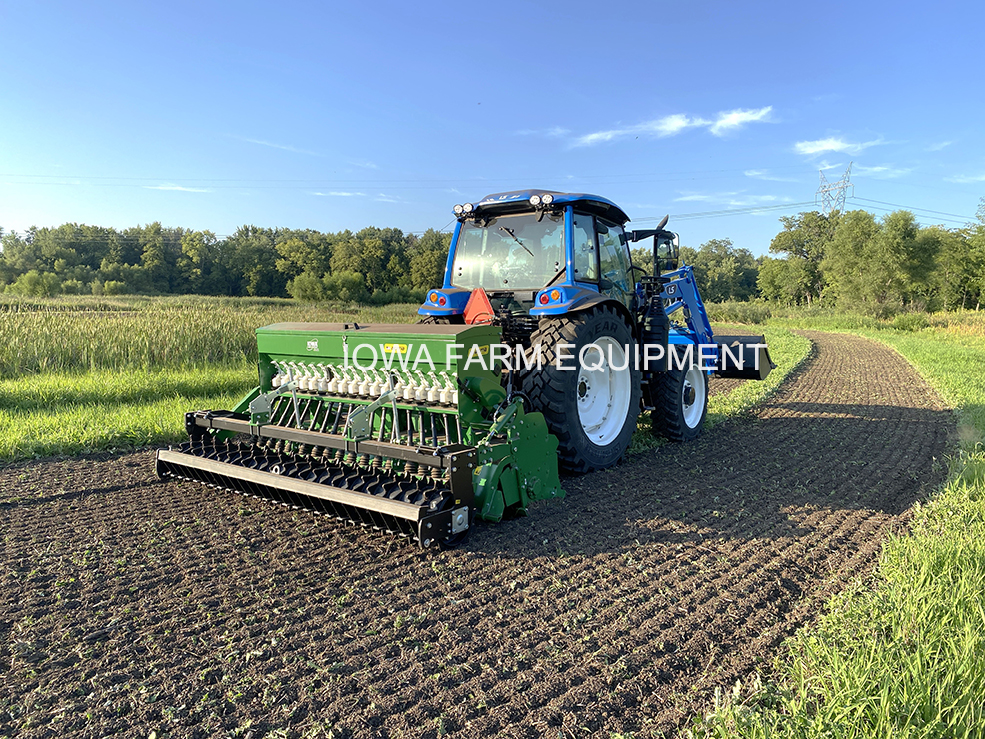

ACMA Model 250P Rotary Tiller with Seeder + Packer Roller
ACMA Model 250P Rotary Tiller with Seeder + Packer Roller
ACMA Model 250P Rotary Tiller with Seeder + Packer Roller
ACMA Model 250P Rotary Tiller with Seeder + Packer Roller
ACMA Model 250P Rotary Tiller with Seeder + Packer Roller
ACMA Model 250P Rotary Tiller with Seeder + Packer Roller
ACMA Model 250P Rotary Tiller with Seeder + Packer Roller
'P' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
230P
250P
300P
Tractor Horsepower (PTO)
65 - 130HP
80 - 130HP
100 - 130HP
PTO Speed
540 RPM
Hitch/Hitch Category
Clevis Style, CAT 2, QH Compatible
Working Width
7'-9"
8'-6"
10'-2"
Overall Width
8'-9"
9'-10"
11'-6"
Rotor
10 Flanges & Total of 54+2 Straight Blades
11 Flanges & Total of 60+2 Straight Blades
12 Flanges & Total of 72+2 Straight Blades
6 Blades Per Flange on 8 Center Flanges
6 Blades Per Flange on 9 Center Flanges
6 Blades Per Flange on 11 Center Flanges
3 Blades Per Flange on 2 Outside Flanges, Plus The Standard & Straight Blades Noted Above!
Blade Tip to Blade Tip Diameter, Rotor
21.25"
Max. Working Depth
10"
Rear Packer Roller Diameter
18"
Weight
2,770 lbs.
3,150 lbs.
3,840 lbs.
Weights are Less Pallets, Crates, PTO Shaft & Roller.
'P' SERIES ROTARY TILLER SPECIFICATIONS
MODEL
230P
250P
300P
Tractor Horsepower (PTO)
65 - 130HP
80 - 130HP
100 - 130HP
PTO Speed
540 RPM
Hitch/Hitch Category
Clevis Style, CAT 2, QH Compatible
Working Width
7'-9"
8'-6"
10'-2"
Overall Width
8'-9"
9'-10"
11'-6"
Rotor
10 Flanges & Total of 54+2 Straight Blades
11 Flanges & Total of 60+2 Straight Blades
12 Flanges & Total of 72+2 Straight Blades
6 Blades Per Flange on 8 Center Flanges
6 Blades Per Flange on 9 Center Flanges
6 Blades Per Flange on 11 Center Flanges
3 Blades Per Flange on 2 Outside Flanges, Plus The Standard & Straight Blades Noted Above!
Blade Tip to Blade Tip Diameter, Rotor
21.25"
Max. Working Depth
10"
Rear Packer Roller Diameter
18"
Weight
2,770 lbs.
3,150 lbs.
3,840 lbs.
Weights are Less Pallets, Crates, PTO Shaft & Roller.
Specifications & Designs Are Subject to Change Without Notice
